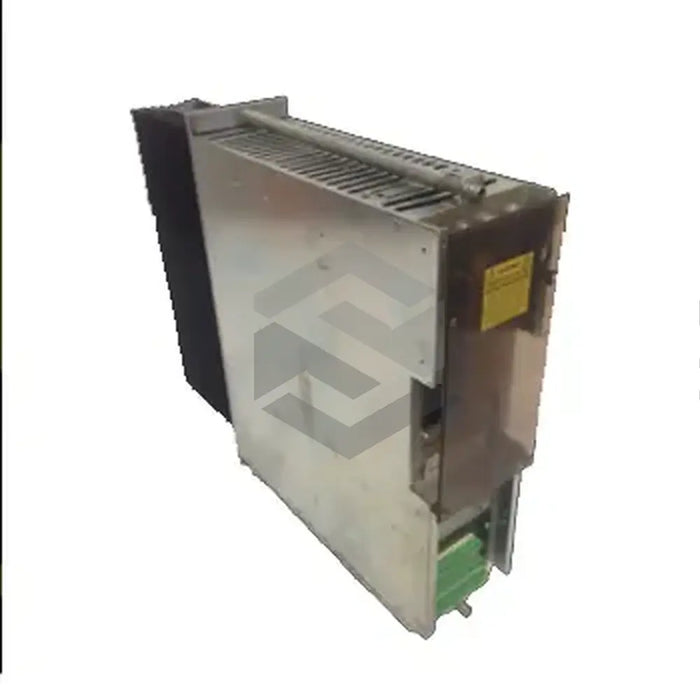

P image of KDS 1.3-050-300-W1

KDS 1.3-050-300-W1

by Bosch Rexroth Indramat
$2,353.25 - $3,058.88
$2,353.25
$2,353.25 - $3,058.88
$2,353.25

In Stock, Ships 1 - 3 Days

The Rexroth Indramat KDS 1.3-050-300-W1 is a highly precise servo drive module of series 1, model 3 within the KDS product line, weighing at 15.5 kgs. It's primarily designed to function with Rexroth Indramat MAC 90-MAC 160 motors, and employs cold-running technology for optimal performance. This module has a link circuit voltage rated at 300 volts DC (± 15%), offers forced convection cooling, and doesn't lose heat in its control cabinet. It yields a continuous power output of 15 kW and exhibits an internal power loss of 85 watts at continuous current. The module functions ideally within an ambient temperature range of +5 oC to +45 oC and can tolerate up to +55 oC at reduced operation. Approved humidity level is rated at category F, as per DIN 40 040. Other specifications include a protection class of IP 10, a peak and continuous current of 50 amperes, and an external power loss of 220 watts.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Product Line

KDS

Series

1

Model

3

Weight

15.5 kgs

Compatibility

Rexroth Indramat MAC 90 – MAC 160 engines

Technology

Cold-running

Link Circuit Voltage

300 volts DC (± 15%)

Cooling Method

Forced convection

Fan

Manufacturer-specified

Nominal Operating Conditions

+5 oC to +45 oC

Peak Current

50 Amperes

Continuous Current

50 Amperes

Continuous Power Rating

15 kW

Power Loss at Continuous Current

85 watts

Maximum Temperature at Derated Data

55oC

Storage and Transit Temperature Range

-30 oC to +85 oC

Humidity Classification

F (DIN 40 040)

Maximum Altitude at 100% Drive Data

1000 meters above NN

Insulation Category

C (DIN VDE 0110)

Protection Class

IP 10 (DIN 40 050)

External Power Loss

220 watts

Type Current

50 Amperes

Safety Guideline

Do not operate if faulty.
