KL5121
by Beckhoff

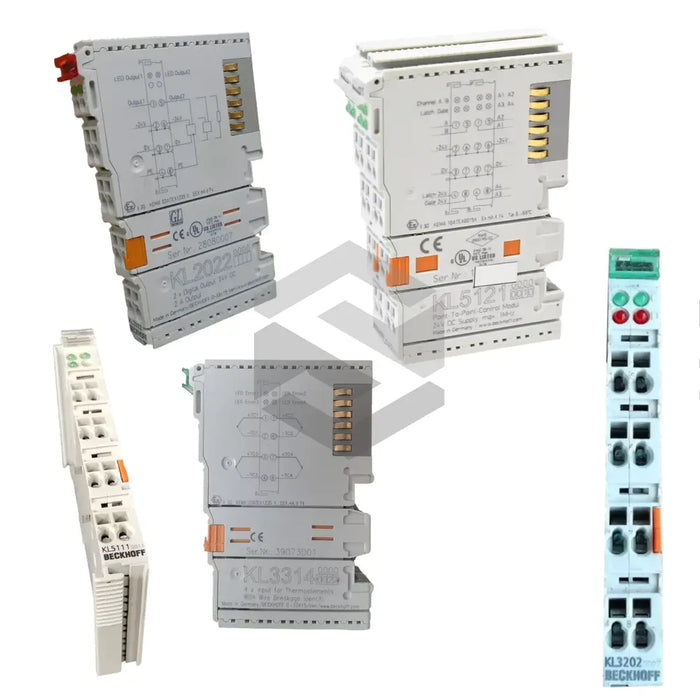

The Beckhoff KL5121 module, part of the KL Analog Input Modules, is a precision incremental encoder interface designed for high-performance industrial automation. Manufactured by Beckhoff, the KL5121 features 1 incremental encoder channel and 4 outputs, enabling seamless integration into existing control systems. With an encoder operating voltage of 24 V DC and a 16-bit binary counter, it delivers accurate position feedback and real-time motion control. Its primary function is to translate rapid encoder pulses into reliable digital signals for drive systems and PLCs.
In terms of technical specifications, the KL5121 supports a limit frequency of 1 million increments per second through 4-fold evaluation, ensuring precise high-speed tracking. The module achieves swift switching times of less than 100 µs, enabling rapid response to control commands. Its process image bit width comprises 2 x 16-bit data and 2 x 8-bit control/status channels, allowing detailed signal analysis and status monitoring. Power consumption is optimized, with typical current consumption on power contacts at 30 mA plus load and K-bus consumption at 60 mA, reducing overall energy demands.
Designed for robust operation, the KL5121 operates over a temperature range of 0…+55 °C (storage: –25…+85 °C) and carries an IP20 protection rating for reliable performance in industrial environments. The module requires a 24 V DC power supply with a tolerance of –15%/+20%, providing flexibility in plant power configurations. Output capability includes 24 V/0.5 A, supporting direct drive of downstream devices. The KL5121’s compatibility with standard Beckhoff K-bus systems and its efficient power utilization make it an ideal choice for automation tasks requiring high precision, durability, and fast control-loop performance in complex industrial applications.
