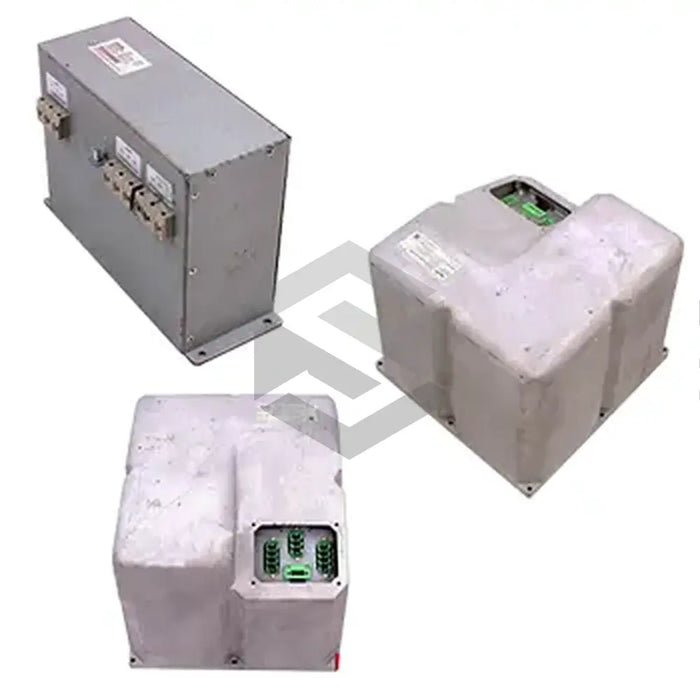

manufacturer image of KNK02.1A-NR-B0012-A-U226-A4-NNNN

KNK02.1A-NR-B0012-A-U226-A4-NNNN

by Bosch Rexroth Indramat
$3,000.70 - $3,000.70
$3,000.70
$3,000.70 - $3,000.70
$3,000.70
Available, Shipping Varies
The Bosch Rexroth Indramat KNK02.1A-NR-B0012-A-U226-A4-NNNN is an essential mains module of the Indra Mi drive system. Consolidating key mains components -- network contactor, mains choke, mains filter – it is highly compatible with KMV supply modules. This module meets IP 65 standards, providing protection against dust, non-corrosive materials, oily liquids, and water jets. It is UL and CE compliant, weighs 20 kg, and operates at a mains voltage of 380 V-500 V. With a nominal current of 12 A, it requires a steady 12 A continuous current, upholding a 10% tolerance at the rated input voltage. Heat dissipation is expedited by utilising a thermal interface and a connected cold plate interface, in lieu of a conventional blower. It boasts a leakage capacitance of 226 nF and 2.3 µH inductance per winding. Operating at continuous current, it discharges 175 W power.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Model: KNK02.1A-NR-B0012-A-U226-A4-NNNN
  • System Component: Mains Module
  • Use: For Indra Mi drive system
  • Compatibility: KMV supply modules
  • Protection Category: IP 65
  • Weight: 20 kg
  • Mains Voltage: 380 V..500 V
  • Continuous Current Required: 12 A
  • Tolerance at Rated Input Voltage: 10%
  • EMC Emissivity Category: C3
  • Heat Dissipation Method: Thermal interface with cold plate interface
  • Leakage Capacitance: 226 nF
  • Inductance per Winding: 2.3 µH
  • Power Dissipation at Continuous Current: 175 W
