KNK03.1A-NR-B0012-P-U226-A4-NNNN

Original price $1,743.00 - Original price $1,743.00
Original price
$1,743.00
$1,743.00 - $1,743.00
Current price $1,743.00
In Stock, Ships Today
Request a quote

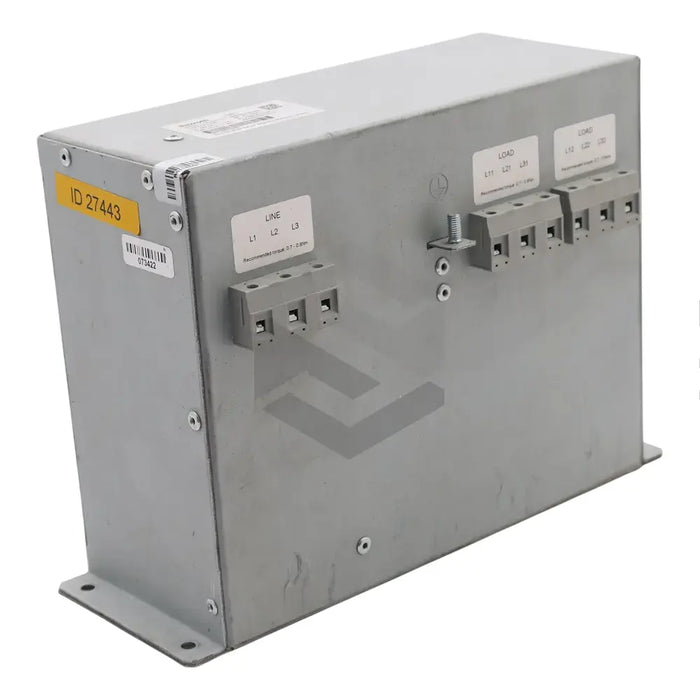

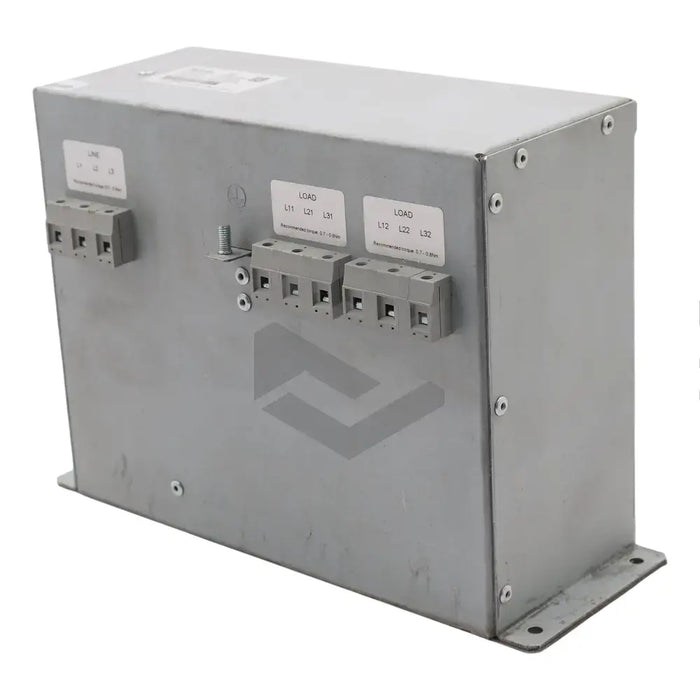

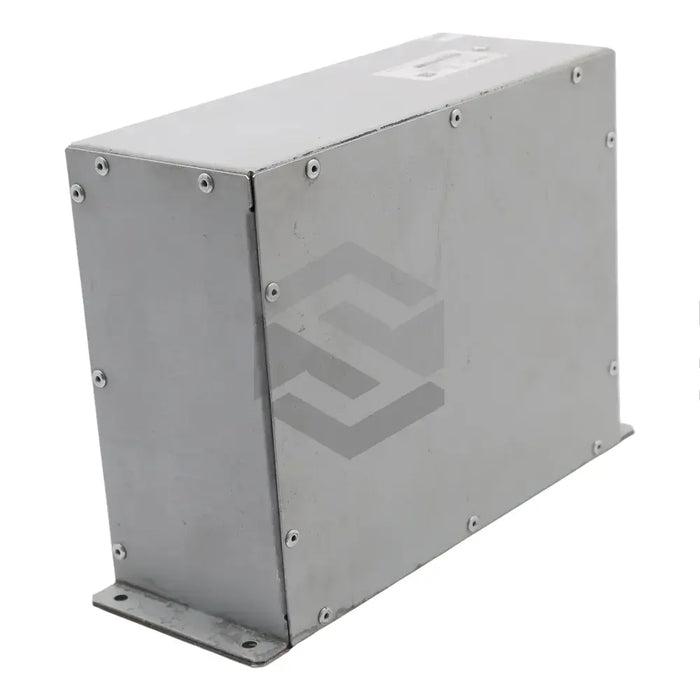

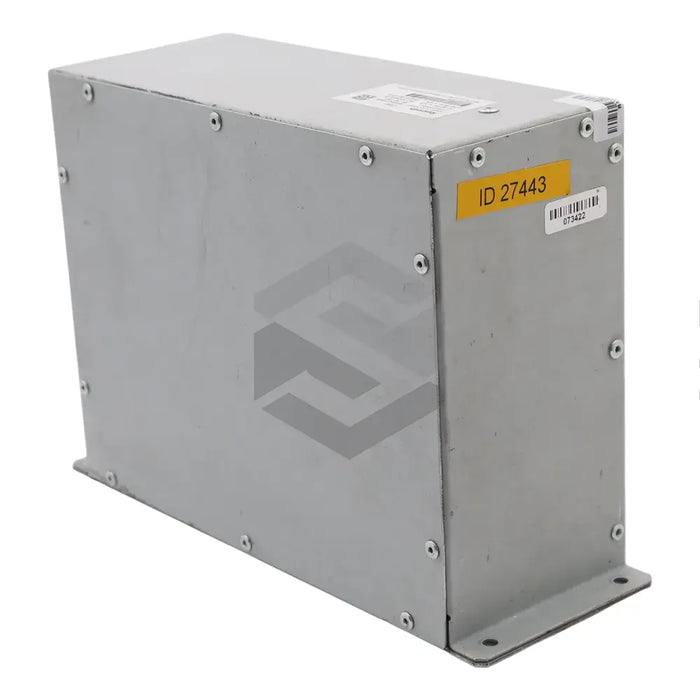

The KNK03.1A-NR-B0012-P-U226-A4-NNNN is a mains module produced by Bosch Rexroth Indramat, a leader in motion control technology. This module forms part of the broader Indra Mi drive system and is characterized by an integrated mains filter, mains choke, and network contactor housed in a single unit. The module operates on a continuous current of 12A, making it compatible with the KMV supply module. It meets DIN standards for EMC emissivity, belongs to category C3 and carries an IP65 protection standard ensuring resistance against water jet penetration and non-corrosive materials. It also offers protection against damage from oily fluids and emulsions. The device weighs 20kg and has UL and CE approvals. It operates on a 380 V..500 V three-phase connection and features an innovative heat dissipation technique involving a cold plate. The module has compact dimensions for easy cabinet installation and offers a leakage capacitance of 226 nF.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Mains Module
  • Model: KNK03.1A-NR-B0012-P-U226-A4-NNNN
  • Integrated Features: Mains filter, mains choke, network contactor
  • Continuous Current: 12 A
  • Compatibility: KMV supply module
  • EMC Emissivity: Complies with DIN category C3
  • Protection Standard: IP 65
  • Inductance: 2.3 µH per winding
  • Weight: 20 kg
  • Approvals: UL, CE
  • Operating Voltage: 380 V..500 V three-phase connection
  • Heat Dissipation: Efficient via attached cold plate
  • Leakage Capacitance: 226 nF
  • Power Dissipation: 175 W at continuous current
  • Dimensions: Small-sized, suitable for control cabinet installation
