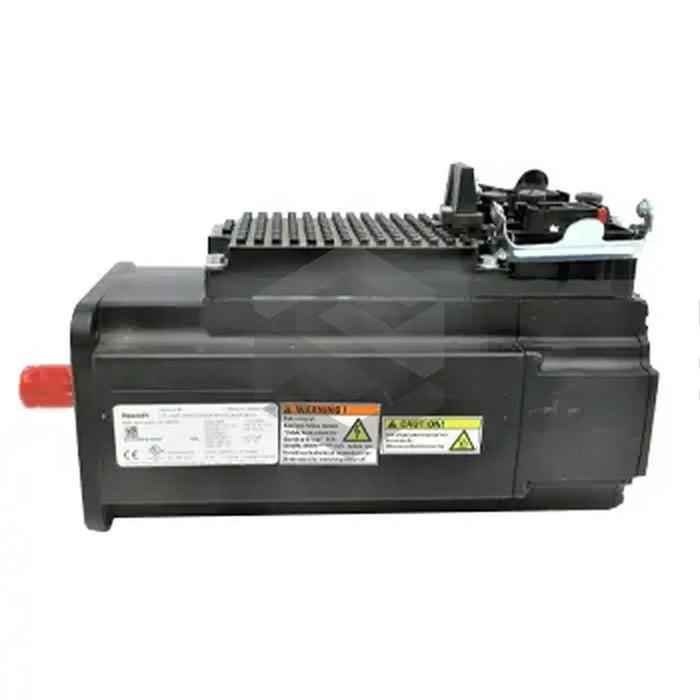

P image of KSM01.2B-061C-35N-M1-HG2-SE-NN-D7-NN-FW

KSM01.2B-061C-35N-M1-HG2-SE-NN-D7-NN-FW

by Bosch Rexroth Indramat
$15,850.69 - $15,850.69
$15,850.69
$15,850.69 - $15,850.69
$15,850.69

Available, Shipping Varies

The KSM01.2B-061C-35N-M1-HG2-SE-NN-D7-NN-FW model by Bosch Rexroth is a servo drive with a DC 750V voltage rating. Weighing approximately 10 kg, this model operates optimally within a temperature scope of 0-40 ͦC. Distinct aspects include a standard length of 061 and a 061C winding code. Boasting IP65 and 155 class insulation, it provides resistance to dirt and low-pressure water jets. At a consistent temperature of 20 ͦC, a steady torque of 2.03 Nm/A is achieved, with a maximum torque of 25Nm requiring a maximum current of 14.9A. This servo drive incorporates natural convection cooling and SERCOS 2 protocol for power supply and communication via a hybrid cable. Equipped with a 128-increment, multiturn-absolute Hiperface optical encoder and a DC 24V holding brake, this model operates with a maximum currency flow of 42000 Arms and rated power of 930W. The firmware must be separately ordered.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth

Product Type

Automation Equipment

Model

KSM01.2B-061C-35N-M1-HG2-SE-NN-D7-NN-FW

Operating Voltage

DC 750V

Control System

KCU Electronic System

Operating Temperature

0 to 40 °C

Length

061 Standard Length

Winding Code

061C

Weight

Approximately 10 kg

Protection Class

IP65

Insulation Class

155

Torque

2.03 Nm/A at 20 °C

Maximum Current

14.9 A

Maximum Torque

25 Nm

Communication Protocol

SERCOS 2

Encoder

Optical encoder, multiturn-absolute Hiperface with 128 increments

Shaft

Plain shaft with sealing ring

Brake

Electrically released DC 24V holding brake

Maximum Current Flow

42000 Arms

Rated Power

930 W

Internal Data Bus Voltage

DC 30 to 42V

Power Consumption

33.5 W

UL Standard

UL 508 C

Firmware

Order Separately.
