KSM01.2B-061C-35N-S1-HP0-SE-NN-D7-NN-FW

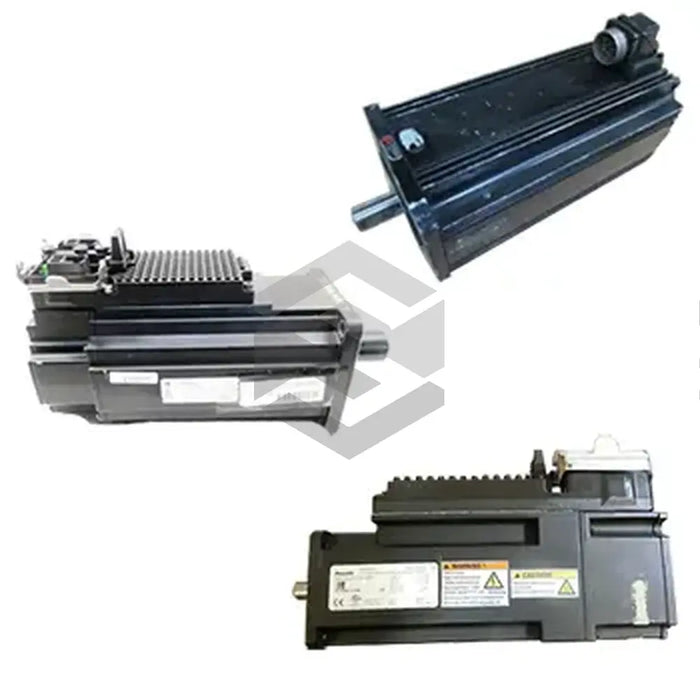

The Bosch Rexroth Indramat KSM01.2B-061C-35N-S1-HP0-SE-NN-D7-NN-FW is a high-precision Motor-Integrated Servo Drive from the KSM Motor Integrated Servo Drives series. This unit delivers a continuous torque of 25 Nm at a continuous current of 14.9 A and supports a supply voltage of DC 750 V. With a winding code of 35 and a motor size of 061, it is engineered for demanding motion control tasks in automated production environments.
This drive features natural convection cooling to maintain optimal operating temperature without reliance on auxiliary fans, enhancing reliability and reducing maintenance. Electrical and communication connections are provided via a robust hybrid connector, while position feedback is achieved through a single-turn optical encoder using the Hiperface interface at 128 signal periods resolution. The unit conforms to the Basic performance level and employs the SERCOS 2 (RS422) protocol for master communication, ensuring seamless integration with modern PLCs and motion controllers. It is delivered without safety technology or holding brake, granting system integrators full flexibility in safety and braking configurations.
Built to withstand industrial conditions, the drive incorporates a sealed shaft with keyway and integrated shaft seals to prevent fluid ingress. Its compact length C design balances performance with space efficiency, weighing in at 9.5 kg for straightforward mounting in control cabinets or motor assemblies. The internal control bus is powered by DC 30–40 V at 15.5 W consumption, while total power dissipation under continuous operation is 140 W. Without an included firmware package, this unit allows customization to project-specific requirements. The absence of a holding brake and safety technology simplifies mechanical design, and global shipping with a one-year warranty through Wake Industrial underscores its dependability in printing, NC machine tools, and a wide array of industrial automation applications.
