KSM01.2B-076C-035N-M1-HP2-SE-NN-D7-NN-FW

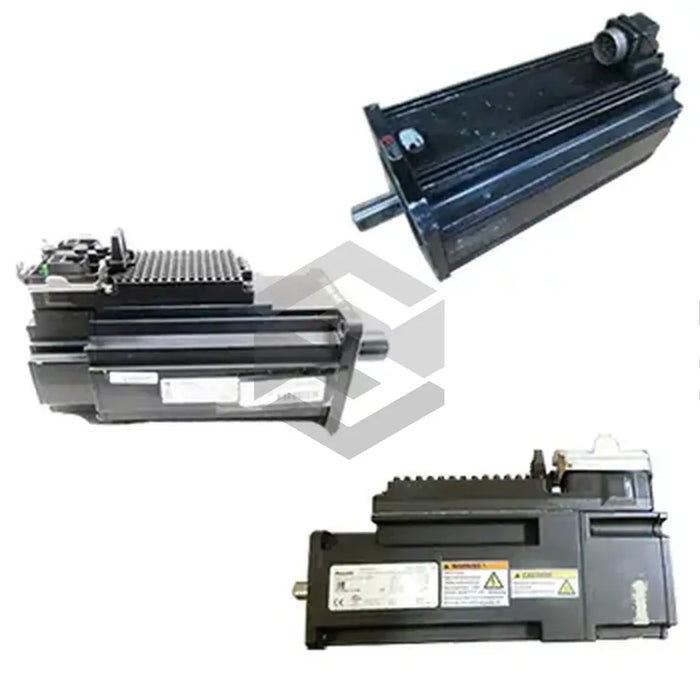

The Bosch Rexroth Indramat KSM01.2B-076C-035N-M1-HP2-SE-NN-D7-NN-FW is part of the KSM Motor Integrated Servo Drives series, blending a Motor-Integrated Servo Drive and precision motion control in a compact package. With a Design Version of **2** and a Motor Size of **076**, this drive delivers continuous torque of **8.7 Nm** and peak torque up to **29 Nm** at **17.7 A**. It serves industrial automation, metal forming, food processing, textile machinery, and other high-precision production applications.
Featuring a high-performance Communication protocol of **SERCOS 2**, the drive operates on a Connecting voltage of **750 V** and relies on Natural convection for efficient thermal management. The Electrical connection is via a robust **hybrid connector**, while feedback is ensured by a Multi-turn absolute Hiperface optical encoder with **128 increments** resolution. A holding brake is **present** for secure load holding, and the shaft includes a **keyway** and **sealing ring** for precise torque transmission and protection against contaminants.
Designed for durability and flexibility, the housing features complete protection against solid and liquid foreign substances and a prime black coat resistant to dilute acids, water, sewage, and mineral oil. With a center diameter of **109 mm**, a total length of **252 mm**, and weighing **14.5 kg**, the drive integrates seamlessly into existing machinery. Although power and feedback cables are ordered separately, its compliance with international motor quality standards ensures reliable performance, energy efficiency, and reduced maintenance in demanding industrial environments.
