KSM01.2B-076C-35N-M1-HG2-SE-NN-D7-NN-FW

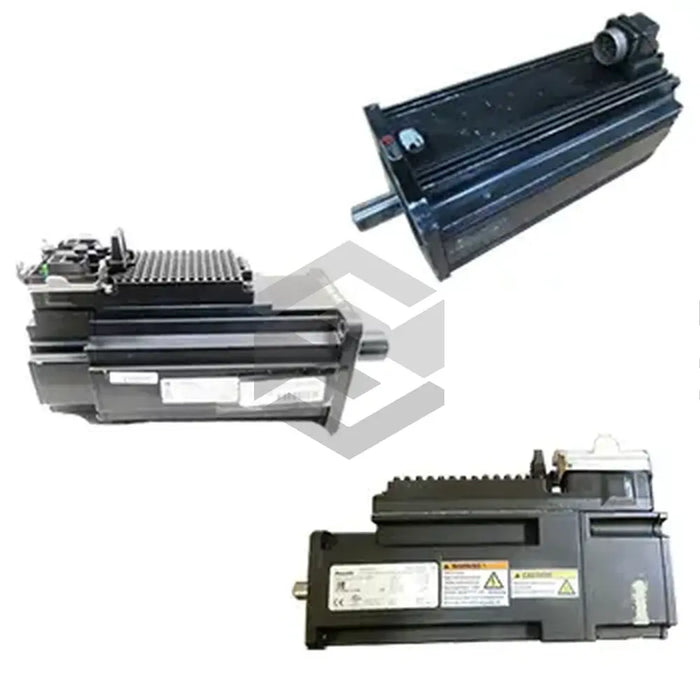

The KSM01.2B-076C-35N-M1-HG2-SE-NN-D7-NN-FW, produced by Bosch Rexroth Indramat, is a Rexroth IndraDrive Mi integrated servo drive, encompassing both a servo motor and control sections with inverters. The motor features a plain shaft with a sealing ring and supports feedback through a multi-turn absolute Hipreface with 128 increments. The servo drive also optionally includes a 24V DC electrically released hold brake. In terms of master communication interface, it uses the SERCOS (RS-422). The servo drive can operate in an ambient temperature ranging between 0 to 40 degrees Celsius, enclosed in an IP 65 rated protection, as certified by the IEC 60529. The servo drive weighs 14.5 kilograms and with a maximum power output of 1240 watts. It operates at a rated control voltage input ranging from 30 to 42 volts DC, generating a sound pressure level of less than 75dB. The motor specifications include a continuous standstill torque of 8.7 Nm, maximum torque of 29 Nm, and a thermal time constant of 25 minutes.
