L404T-032

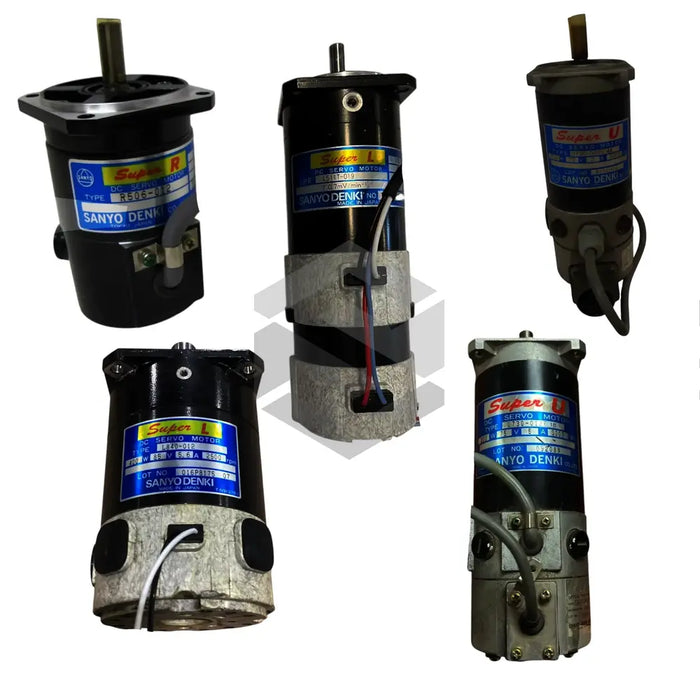

The L404T-032 DC servo motor from Sanyo Denki’s renowned Super DC Servo Motors series delivers precision control in a compact package. Weighing just 0.4 kg, this Motor Type: DC unit offers a Rated Output: 22 W at a Rated Voltage: 48 V DC, achieving a Rated Speed: 1600 rpm for consistent rotational performance. With a Rated Torque: 0.13 N·m and a Peak Torque: 0.35 N·m, the motor balances power density and compactness for space-constrained industrial automation environments. The incorporated Standard Encoder Resolution: 1000 P/R provides high-resolution position feedback, while the Induced Voltage Constant: 4.9 mV/min⁻¹ ensures accurate tachometric sensing. Its Rated Current: 0.89 A operation minimizes energy consumption without sacrificing responsiveness.

The L404T-032’s dynamic response is enhanced by an Electrical Time Constant: 0.32 ms and a Mechanical Time Constant: 6 ms, enabling rapid acceleration and deceleration cycles. Its Armature Resistance: 2.8 Ω and optimized winding inductance contribute to stable current control, preventing overshoot during setpoint changes. A Momentary Max Stall Current: 2 A rating allows brief high-torque demands without compromising longevity. The built-in encoder is an optical incremental type delivering 500 PPR standard pulses, augmented by smooth natural convection cooling for uninterrupted operation. The motor’s Rated Power Rate: 1.2 kW/s further underlines its suitability for high-throughput tasks requiring swift torque adjustments.

Engineered for reliability, the L404T-032 features robust insulation rated for continuous operation in environments up to 130 °C, withstanding ambient humidity levels to 85% RH without condensation. Vibration tolerance up to 2.5 G and shock resistance to 4.9 m/s² make it well-suited for rugged industrial settings. Standard NEMA-compatible mounting dimensions and color-coded wiring simplify integration into OEM systems and retrofit applications. Its compact footprint and natural cooling ensure seamless compatibility with servo drives, motion controllers, and indexing tables. Ideal for laboratory automation, semiconductor handling, precision conveyors, and robotic end-effectors, the L404T-032 delivers dependable performance where accuracy and responsiveness are critical.
