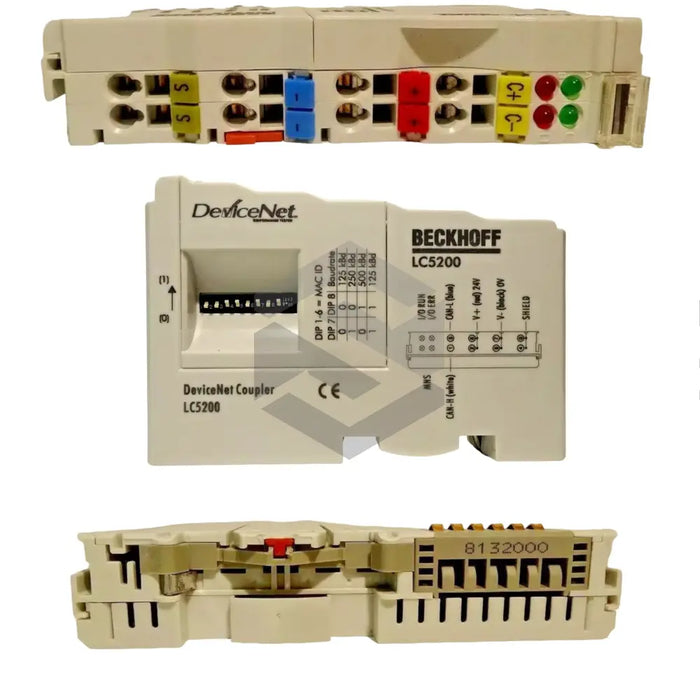

The LC5200 is a Bus Coupler manufactured by Beckhoff, part of the LC Bus Couplers series. It manages up to 64 bus terminals and supports 256 digital peripheral signals. Operating on 24 VDC (11–25 V), it provides 32 bytes each of input and output data, features an IP20 protection class, and weighs approx. 100 g.
Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.
Bus Connection
1 x 5-pin open pluggable connector (spring-loaded)
Bus Terminals
64
Dielectric Strength
500 V
Digital Peripheral Signals
256 I/O
Input Current
70 mA + (total K-bus current/4); max 500 mA
Input Data Bytes
32
Inrush Current
≈2.5× continuous current
K-bus Power Supply
500 mA
Mounting
35 mm DIN rail (EN 60715)
Operating Temperature
0 °C to +55 °C
Output Data Bytes
32
Power Contact Current
max 10 A
Power Contact Voltage
max 24 VDC
Storage Temperature
-25 °C to +85 °C
Supply Voltage
24 VDC (−15%/+20%); 11–25 V (DeviceNet)
Weight
approx. 100 g
