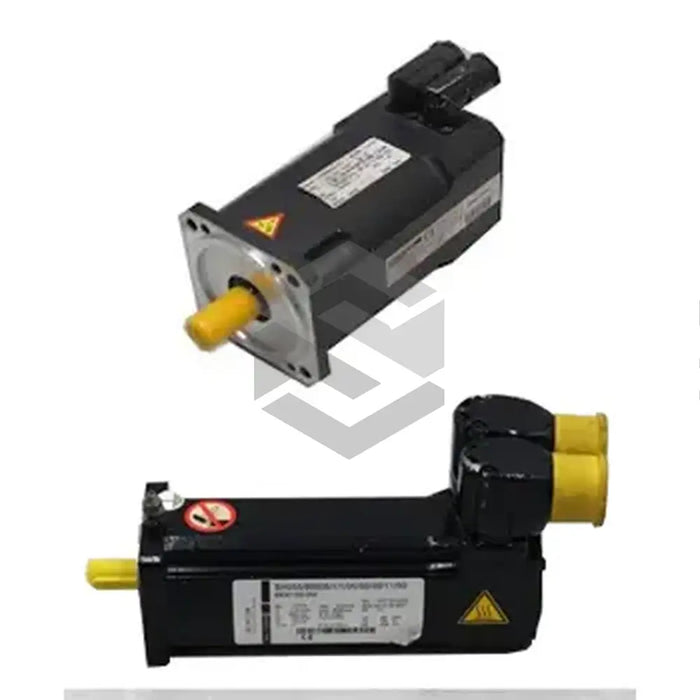

S image of LSM100-35-454-S-0KA

LSM100-35-454-S-0KA

by Kollmorgen
$2,249.98 - $2,249.98
$2,249.98
$2,249.98 - $2,249.98
$2,249.98

In Stock, Ships 1 - 3 Days

The Kollmorgen LSM100-35-454-S-0KA from the LSM Brushless Servo Motors series is engineered for industrial automation applications demanding high responsiveness and precise motion control. This brushless servo motor delivers a peak torque of 16 Nm and continuous torque of 4 Nm, achieved with 8 poles and a rated speed of 4500 rpm. The winding resistance of 5.9 Ohms at 25°C and rotor moment of inertia of 0.00017 kg-m2 ensure balanced thermal performance and rapid acceleration. Weighing 5.3 kg, it offers a compact footprint while providing robust power for high-speed conveyor, packaging, and labeling systems, optimizing throughput and accuracy.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Continuous Torque

4 Nm / 35 In-lb

Ke Voltage Constant (v/krpm)

103

Kt (nm/amp)

0.86

Maximum Current (amps Peak)

22.6

Motor Net Weight

5.3 kg / 11.7 lb

Motor Net Weight With Brake

7.1 kg / 15.7 lb

Peak Torque

16 Nm / 142 In-lb

Poles

8

Rotor Moment Of Inertia

0.00017 kg-m2 / 0.0015 lb-in-s2

Rotor Moment Of Inertia With Brake

0.0002 kg-m2 / 0.0018 lb-in-s2

Shaft Material

ST-60

Speed

4500 rpm

Stall Current (amps Peak)

5

Winding Inductance (phase To Phase)

16.8 mH

Winding Resistance (phase To Phase @ 25°c)

5.9 Ohm
