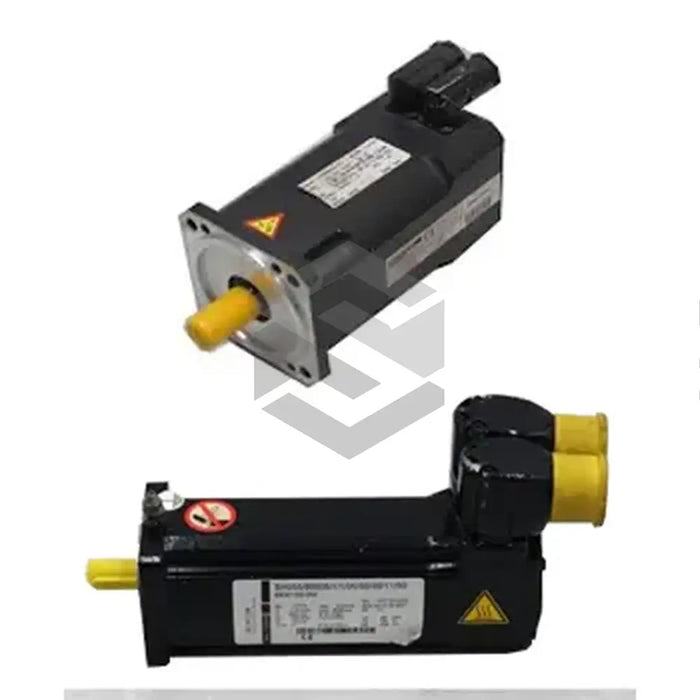

LSM34N-10-602-E2-2KA

The Kollmorgen LSM34N-10-602-E2-2KA servo motor from the LSM Brushless Servo Motors series is a high‐performance, brushless AC actuator designed for precision motion control in demanding industrial environments. This compact unit weighs only 2.3 kg and operates on 230 Volts AC, delivering smooth, reliable performance with minimal maintenance. Featuring a built-in 2000 line incremental encoder, the motor provides accurate position feedback and fast response to control inputs. Its nominal speed of 6020 RPM ensures rapid accelerations, while the brushless design maximizes efficiency and extends operational life.

Engineered for technical excellence, the LSM34N‐10‐602‐E2‐2KA boasts a rated torque of 1.1 Nm and a peak torque of 4.4 Nm for short‐duration high‐load events. The winding characteristics include a winding inductance of 23.8 mH and winding resistance of 4 Ohms, supporting stable current control. Key motor constants—voltage constant (KE) of 45 Volts/kRPM and torque constant (KT) of 0.37 Nm/A—provide predictable electrical‐to‐mechanical conversion. Rated for a continuous speed rating of 6020 RPM, this motor maintains consistent performance across its operating range. Additional mounting dimensions include a length of 148.2 mm and a flange size of 70 mm to facilitate integration into standard machine architectures.

Operational features emphasize safety and reliability. The integrated temperature sensors monitor winding temperatures and initiate shutdown upon reaching critical thresholds, protecting the motor from thermal overload. A 24 VDC holding brake prevents unintended shaft rotation when the motor is de-energized, ensuring secure stops in vertical or critical‐load applications. The main shaft incorporates a precision keyway for positive torque transmission, and convection cooling allows for maintenance-free heat dissipation under normal ambient conditions. High‐grade permanent magnets deliver exceptional acceleration and deceleration performance, minimizing cycle times in automated processes.

Designed for seamless integration, the LSM34N‐10‐602‐E2‐2KA supports standard cable sets for rapid installation and is compatible with a broad range of Kollmorgen servo drives and controllers. The variety of available feedback options—including incremental, sin/cos, and multiturn encoders—allows system architects to tailor the motor to specific control strategies. Ideal for applications in industrial automation, robotics, CNC machining, and packaging equipment, this motor offers the reliability and precision required in modern manufacturing environments. Qualified personnel should perform installation, commissioning, and maintenance procedures following manufacturer guidelines to ensure safe operation.
