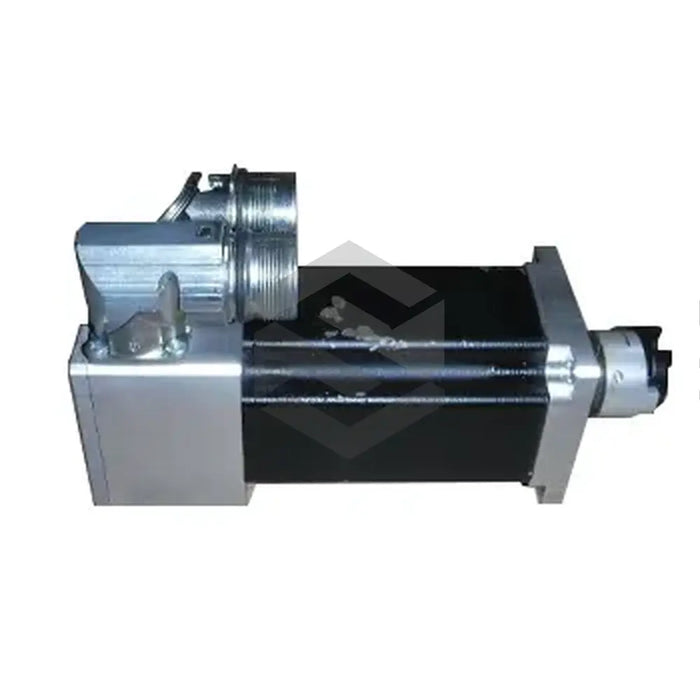

The LSM63-12-602-E1-2KA is a brushless servo motor by industrial automation products supplier, Kollmorgen. It is recognized internationally for its cost-effective use and maintenance-free operation. The LSM63 model contains a keyway rotor for uninterrupted power delivery and a sealing ring to prevent leakage. It includes a standard bearing with a 20,000-hour operating life. Capable of withstanding a radial force up to 28 kg at 500 rpm, and 23 kg at 6000 rpm, it operates at an AC 230 V rated voltage and should be used with the recommended servo drive module and only by well-trained personnel. Weighing 1.8 kg, not including accessories and holding brake, it offers high dynamics when used under Kollmorgen-specified conditions. With easy installation, it provides high-speed point-to-point positioning and operates with 4.1 A of continuous current. It includes a 24 VDC electrically released holding brake and an E1 incremental encoder for position tracking.
30 Day Warranty
Technical Specifications
  • Manufacturer: Kollmorgen
  • Model Number: LSM63-12-602-E1-2KA
  • Type: Brushless Servo Motor
  • Rotor: With Keyway
  • Shaft Sealing Ring: Yes
  • Standard Bearing Life: 20,000 Hours
  • Max Radial Force (500 rpm): 28 kg
  • Max Radial Force (6000 rpm): 23 kg
  • Rated Voltage: AC 230 V
  • Weight: 1.8 kg
  • Current Consumption: 4.1 A
  • Continuous Torque: 1.4 Nm
  • Holding Brake: 24 VDC, Electrically Released
  • Encoder: E1 Incremental
  • Operation: High-speed Point-to-point positioning
  • Installation: Easy
  • ISO9000 Facility: Yes
