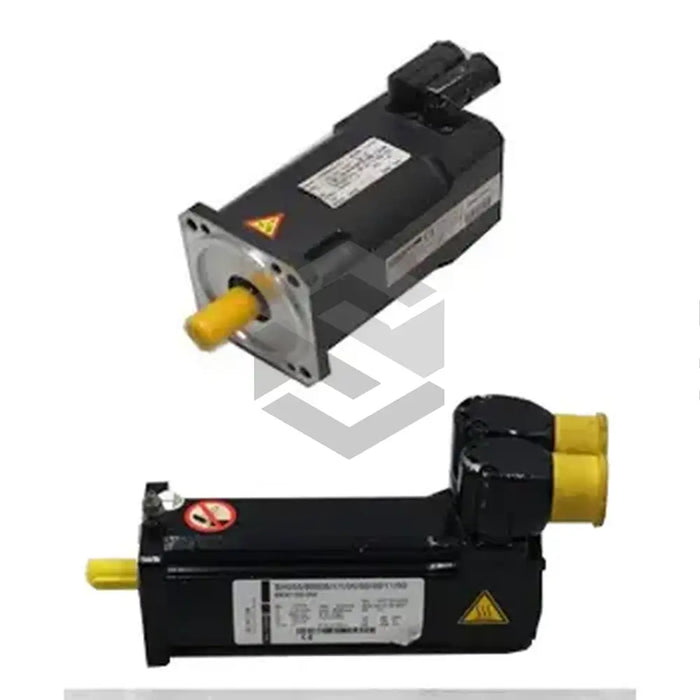

S image of LSM75-21-602-S-OKA

LSM75-21-602-S-OKA

by Kollmorgen
$2,700.00 - $2,700.00
$2,700.00
$2,700.00 - $2,700.00
$2,700.00

In Stock, Ships Fast

The LSM75-21-602-S-OKA is a 230-volt brushless servo motor developed by Kollmorgen. Weighing 3.1 kg, the servo motor is composed of a steel shaft and flaunts a continuous torque of 2.36 Nm coupled with a peak torque of 8.8 Nm. Performing at a winding speed of 6000 RPM, the motor's maximum stall current is 5.5A, with a maximum current rating of 21.6A. Notably, the product has a KT rating of 0.42 Nm/A, a KE voltage constant of 49 V/kRPM, and a rotor with the moment of inertia of 0.000033 kgm2. It also features an 8-pole, 75 frame construction with a winding resistance of 2.26 Ohm at 25°C, and a winding inductance of 17.9 mH. The LSM75-21-602-S-OKA operates optimally between 0°C and 40°C, with a storage temperature range of -30°C to 70°C, making it functional in varying industrial environments.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Kollmorgen

Product Code

LSM75-21-602-S-OKA

Type

230 Volts Brushless Servo motor

Net Weight

3.1 kg_

Shaft Material

Steel

Continuous Torque

21 in-lb (2.36 Nm)

Peak Torque

78 in-lb (8.8 Nm)

Winding Speed

6000 rotations per minute

Stall Current

5.5 A

Maximum Current Rating

21.6 A

KT Rating

0.42 Nm/A

KE Voltage Constant

49 V/kRPM

Pole Count

8 poles

Frame Size

75 frames

Winding Resistance

2.26 Ohm at 25o C

Phase-to-Phase Winding Inductance

17.9 mH

Rotor Moment of Inertia

0.000033 kgm2 (0.00029 lb-in-s2)

Interface Type

Single Turn high-resolution

Shaft Keyway

Present

Standard Motor Radial Load Force

25 kg

Axial Load Force

Zero

Operating Temperature

0 degrees C to 40 degrees C

Storage Temperature

-30 degrees C to 70 degrees C

Application

Industrial environments without corrosive moisture or abrupt temperature changes.
