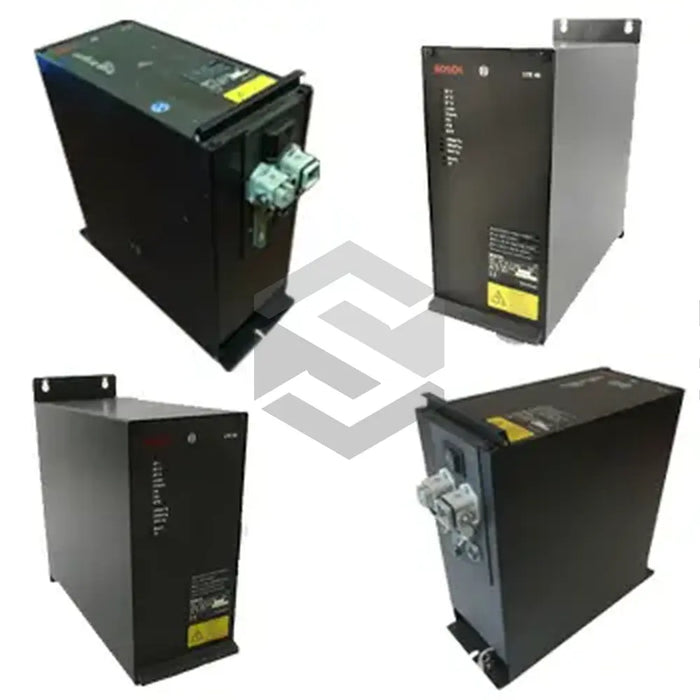

manufacturer image of LTE 45 0 608 750 041

LTE 45 0 608 750 041

by Bosch Rexroth Indramat
$1,200.00 - $1,200.00
$1,200.00
$1,200.00 - $1,200.00
$1,200.00
In Stock, Ships 3 - 5 Days
The LTE 45 0 608 750 041, produced by Bosch Rexroth Indramat, is a servo amplifier specifically designed for handling EC motors. It operates by regulating, supplying, and monitoring the linked motor performance and frequency, which controls the cycle rate the inverter generates. Noteworthy integrated modules include a line filter, controller card, driver card, and power supply. The servo amplifier also boasts of a brake chopper that protects against voltage peaks when braking. It runs on a supply voltage of 220V to 240V (+/-10%), with an output current between 10A and 45A and output voltage limited to 310 VDC. The amplifier operates optimally at 0-45 degrees Celsius, with a peak current of 23A, and at 0-40 degrees with a peak of 45A. The person operating the LTE 45 0 608 750 041 should possess expertise in machine hardware components, and all connections should be securely attached before use.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Line: Bosch Rexroth Group
  • Product Type: Servo Amplifier
  • Use: EC motors supply, control, and monitoring
  • Features: Brake chopper, Integrated line filter, Controller card, Driver card, Power supply
  • Protection Category: IP 40
  • Protection Class: Protective Earth
  • Supply Voltage: 220V to 240V (+/-10%)
  • Output Current: 10A to 45A
  • Output Frequency: 0 to 500Hz
  • Output Voltage: 310 VDC
  • Operating Temperature: 0 to 45 degrees (23A peak current), 0 to 40 degrees (45A peak current)
  • Storage Temperature: -20 to 70 degrees
  • Permissible Humidity: 20% to 90%
  • Installation Elevation: 1000 meters above sea level
  • Intended Operating Environment: Industrial
  • Qualification for Operation: Person qualified in machine hardware components
  • Required Pre-Operation Conditions: All motor connections and power supply connections are plugged in.
