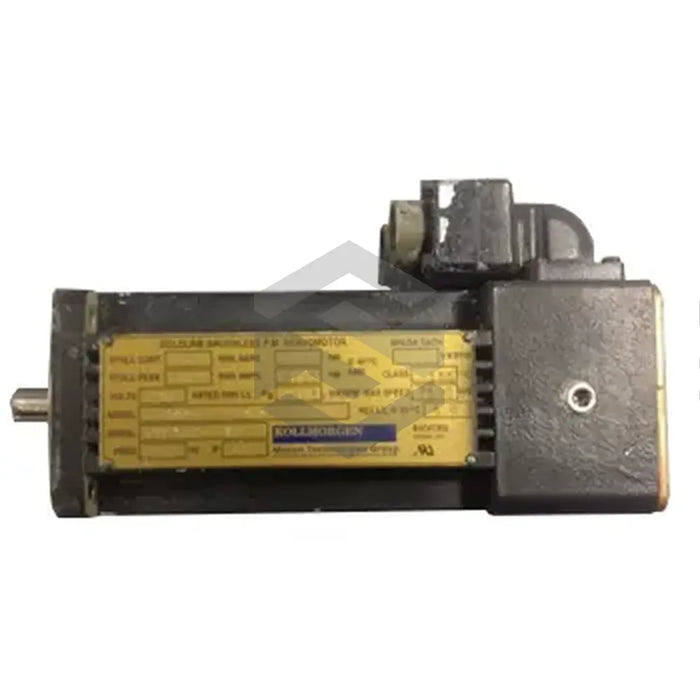

P image of M-103-A-22

M-103-A-22

by Kollmorgen
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The M-103-A-22 is a medium inertia, Goldline series servo motor from Kollmorgen, delivering a high torque-to-volume ratio. It is designed to interface optimally with systems carrying larger inertia mismatches or compliant loads. This motor can achieve speeds of up to 7500 RPM and comes with a rugged resolver feedback, rear shaft extensions, and an inbuilt thermostat. Optional features include a fail-safe brake, NEMA mounting, mating connectors, and front-mounted gearheads. Certified by the Underwriters Laboratories, it's designed for either an IP 65 or IP 67 sealing. It has a horsepower rating of 0.73 HP, a rated power of 0.54 KW, and delivers a continuous stall torque of 0.84 N-m at 40 degrees Celsius, with a peak torque of 2.41 N-m. This long-lasting, maintenance-free, brushless servo motor also features a stall torque sensitivity of 0.35 N-m/Amp RMS and a peak line current of 7.2 Amps RMS.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Kollmorgen

Product Category

Servo Motor

Product Line

M Series

Product ID

M-103-A-22

Maximum Speed

7500 Revolutions Per Minute

Feedback

Rugged Resolver

Additional Features

Rear Shaft Extensions, High Torque to Volume Ratio, Built-In Thermostat

Certifications

Underwriters Laboratories Recognized

Optional Features

Fail-Safe Brake, Mating Connectors, NEMA Mounting, Front Mounted Gearheads

Sealing

IP 65 or IP67

Horsepower Rating

0.73 HP

Rated Power

0.54 kilo Watts

Continuous Stall Torque

0.84 N-m at 40 Degrees Celsius

Peak Torque

2.41 N-m

Stall Torque Sensitivity

0.35 N-m/Amp RMS

Maximum Theoretical Acceleration

11400 rad Per Second (Squared)

Service Life

Long Life Bearings, Maintenance-Free
