M.3000.09.12
by Kollmorgen

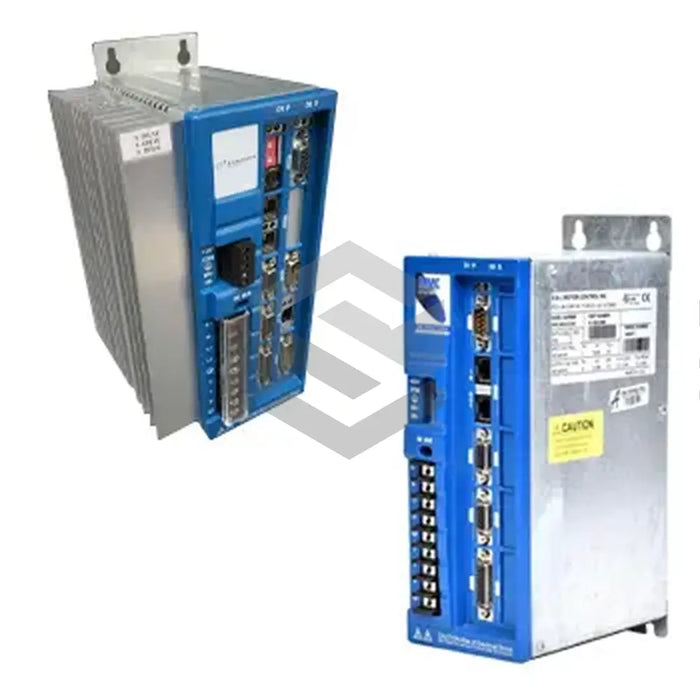

The M.3000.09.12 (MMC-SD-1.0-230-D) is a digitally advanced and smart MMC drive manufactured by Kollmorgen. It boasts a 3-phase sinusoidal commutation along with a digital Proportional Integral (PI) current regulator and a Proportional, Integral, and Derivative (PID) velocity regulator. With a maximum tightening torque of 10.4 in-lbs (1.17 Nm) on power terminals, the unit has a nominal input power of 2.0 kVA. The device can provide a continuous current output of 5 A, peaks at an output current of 15 A, and weighs 5.6 lbs (2.5 kg). The product also integrates the Maxim 3098 A quad B differential RS422 feedback input receiver.
