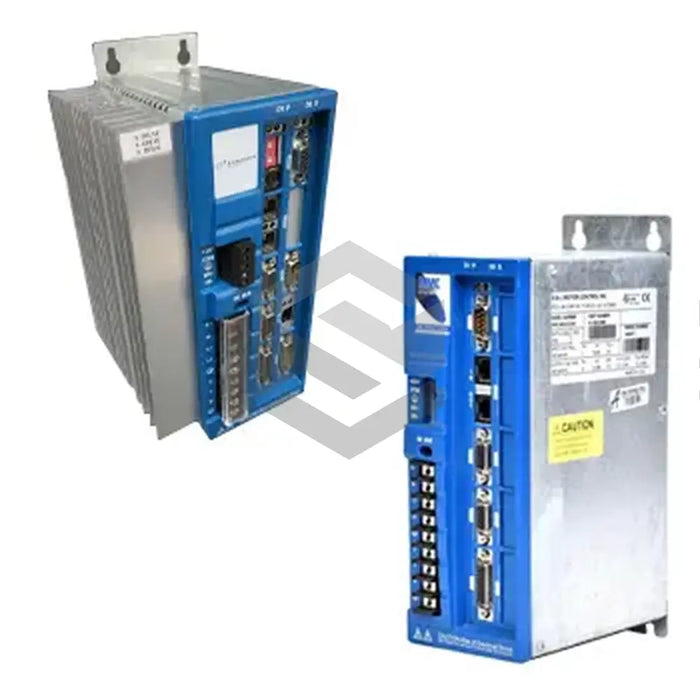

M.1302.8908
by Kollmorgen
The Kollmorgen M.1302.8908 drive is a compact, high-performance module in the MMC Standalone Smart Drives series designed for industrial automation applications. With an output power rating of 0.5 kW and a nominal input current of 5 Amps, it delivers precise motion control for conveyor systems, pick-and-place machines, and other factory automation equipment. This single-phase configuration supports a wide input voltage range of 100–240 VAC (nominal) and operates continuously at 2.5 Amps, making it suitable for installations where space and energy efficiency are critical.
The M.1302.8908 drive provides an array of detailed technical specifications tailored for demanding environments. It accepts an input frequency of 47–63 Hz and accommodates absolute voltage limits from 88–265 VAC. The drive sustains a continuous output current rating of 2.5 Amps with a peak output current rating of 7.5 Amps, enabling brief bursts of high torque when acceleration or load changes occur. Output modulation spans 0–266 Hz for precise speed regulation, while its inrush current of 1.5 A for 10 ms minimizes electrical disturbances at start-up. The module also features a Dc Input Power Specification of 24 VDC +15%/-10% to interface with auxiliary control circuits.
Beyond core motion control, the M.1302.8908 excels in efficiency and integration. Its power loss of only 22 Watts highlights thermal management and energy conservation, reducing heat buildup and cooling requirements. Weighing 4.9 lbs (2.23 kg), the drive ensures easy mounting in compact control cabinets. A built-in relay contact for motor mechanical brake supports 24 VDC switching, simplifying safety circuit design. Typical input wattage is just 9 W with a typical input current of 375 mA, underscoring its low standby consumption. Together, these features provide reliable, durable performance and seamless compatibility with existing industrial systems, delivering enhanced uptime and cost-effective operation in automated production environments.
