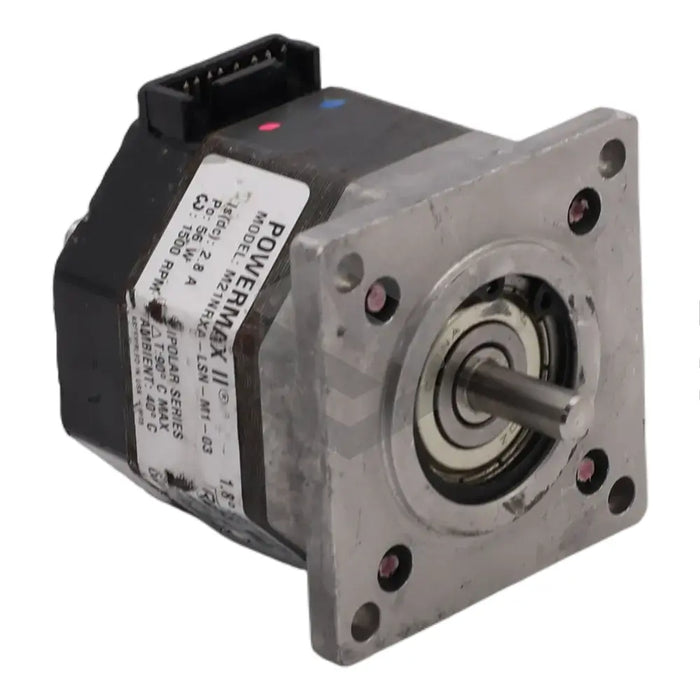

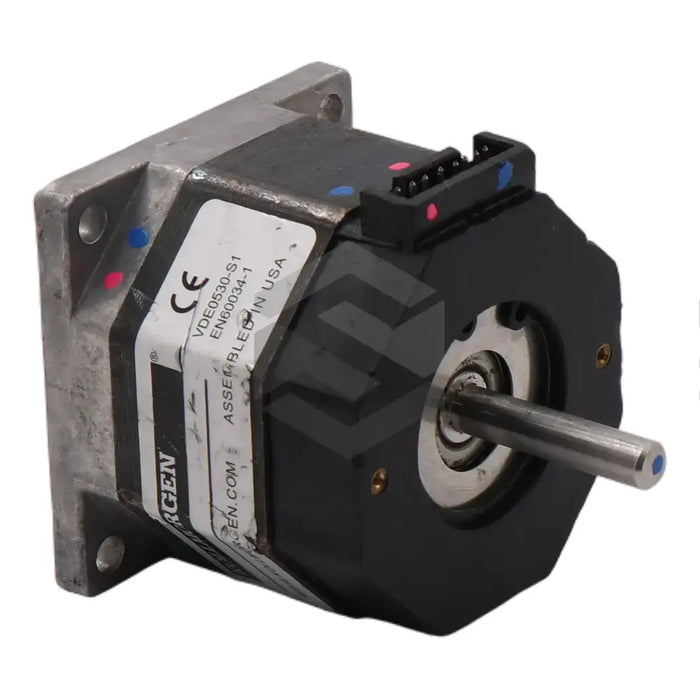

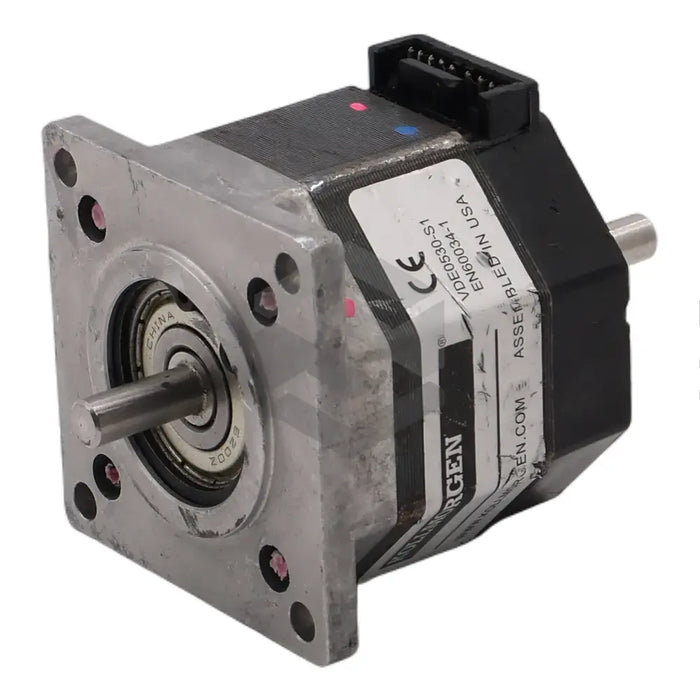

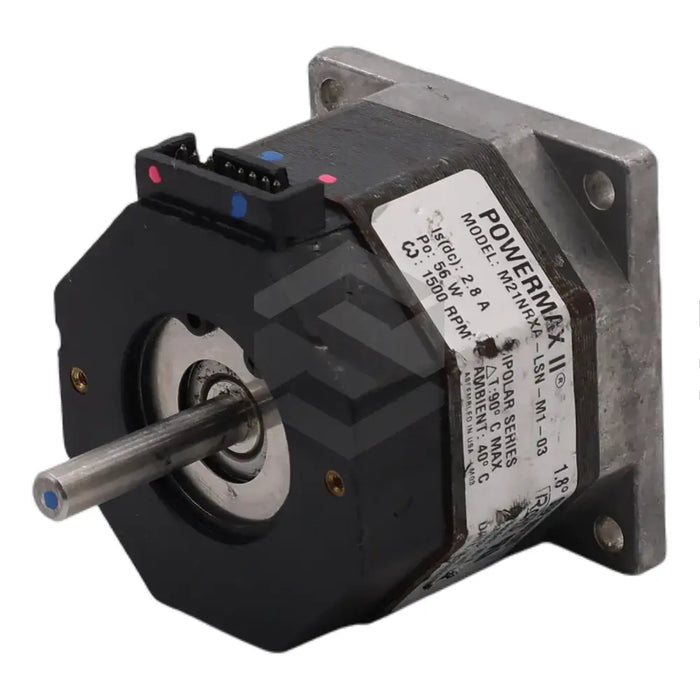

C image of M21NRXA-LSN-M1-03 | Main (Front Left)

M21NRXA-LSN-M1-03

by Pacific Scientific
$1,144.25 - $1,144.25
$1,144.25
$1,144.25 - $1,144.25
$1,144.25

Available, Shipping Varies

The M21NRXA-LSN-M1-03 is a robust and efficient model of the M series POWERMAX II hybrid step motor, designed by Pacific Scientific, recognized for its high power, efficiency and wide speed range. It operates at 2.8 amps per phase with 1.80 degrees per step, resulting in 200 steps. The motor features dual 0.25 inch round shafts with a 3 inches length. Other key attributes include 50W power, a Base RPM of 1500, and a DC current rating of 2.8A BIPOLAR SERIES for each phase. The front and rear shafts measure around 0.6 inches and 1.0 inches respectively. This model employs a NEMA 23 mounting size and has a specialty shaft modification. With a built-in winding holder and termination type per designated letter, the M21NRXA-LSN-M1-03 model is designed to be compact, durable, and user-friendly. An accurate motor size and specification are required for optimal performance and safety.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Model

M21NRXA-LSN-M1-03

Brand

Pacific Scientific

Series

POWERMAX II

Motor Type

Hybrid Stepper Motor

Amps per Phase

2.8

Step angle

1.80

Shaft Sizes

0.25 inches

Standing Length

3 inches

Power

50W

RPM

1500

Wiring Configuration

8-Wire

DC Rated Current per Phase

2.8A BIPOLAR SERIES

Front Shaft Length

0.6 inches

Rear Shaft Length

1.0 inches

Mounting

NEMA Size 23

Shaft Configuration and Modification

Smooth and Special

Construction

Regular

Model Type

Enhanced

Termination

Receptacle

Winding Type

Per Assigned Letter

Rotor Type

Standard

Encoder Option

Encoder Mounting Provisions

Sequence Number

Factory Attached.
