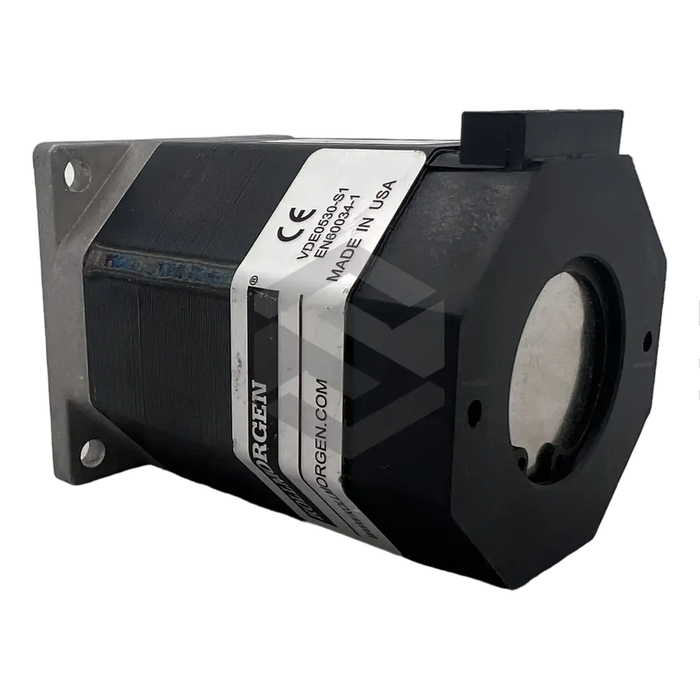

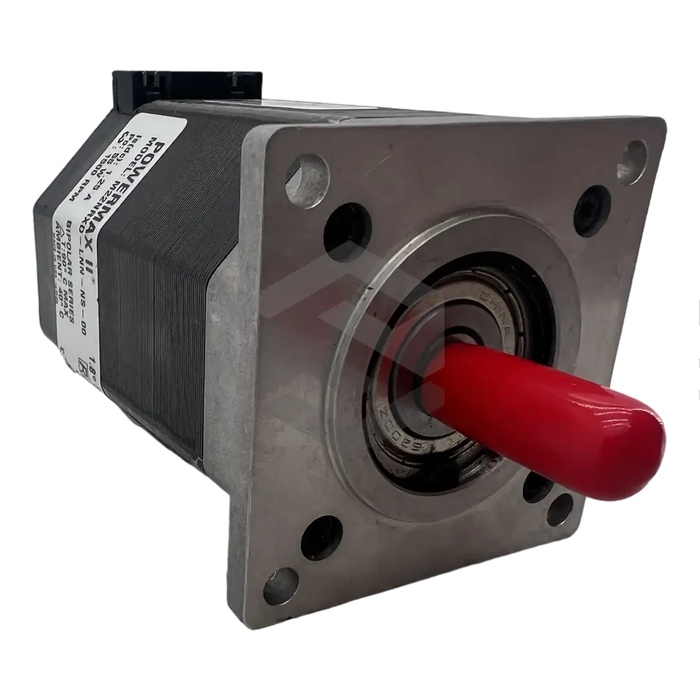

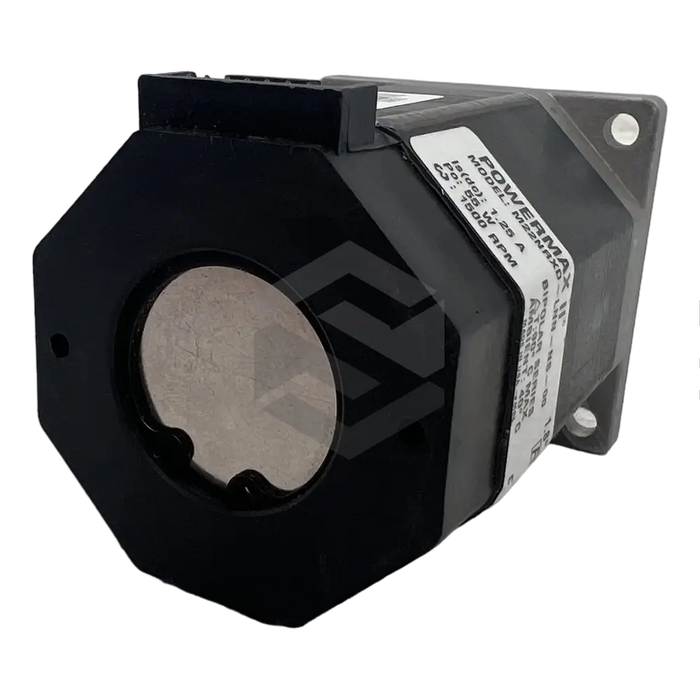

M22NRXD-LNN-NS-00
The M22NRXD-LNN-NS-00, a product of Pacific Scientific manufacturing, belongs to the renowned POWERMAX II Hybrid Step-Motors series. Distinguished by its compact NEMA 23 frame size, this motor delivers impressive torque outputs due to the company’s innovative technology facilitating a high torque-to-weight ratio. Key to the motor's design are Samarium-cobalt magnets that optimize magnetic flux concentration within the stator. One of the standout advantages of this motor is the wide range of customization possibilities. Specific standard features can be varied to achieve ideal inertia, acceleration, and torque results, facilitated further by its single flat type shaft, two stacks, factory assigned windings, standard rotor design and receptacle termination. The patented Sigmax® technology incorporated in M22NRXD-LNN-NS-00 promotes efficient redirection of magnetic flux resulting in limited leakage and thus optimizes torque output. Its unique Rare earth magnet stator focuses the flux on the torque-producing rotor, yielding high acceleration and high torque performance.
