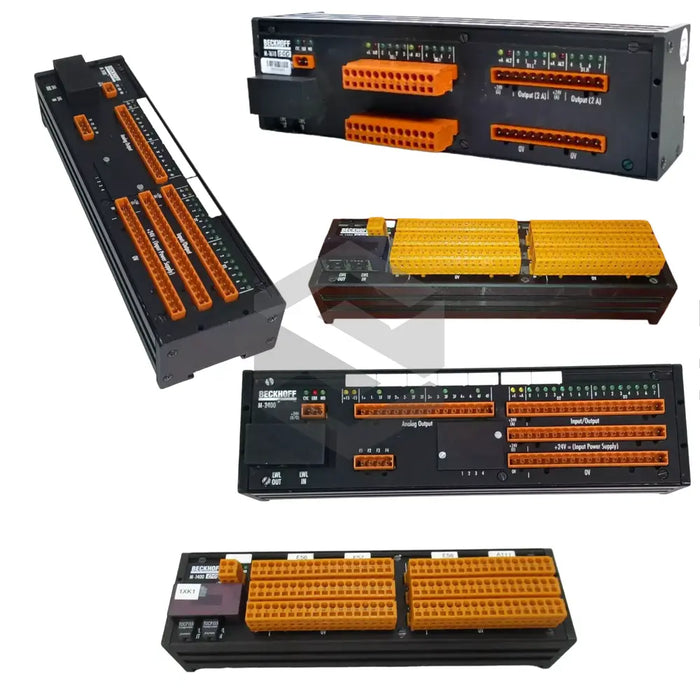

The Beckhoff M2400 is a versatile parallel I/O module from the M Parallel IO Modules series, offering 16 configurable I/O with LED indicators. It supports fiber optic I/O at 2.5 MBaud and 4 analog outputs (±10 V/0–20 mA) with 12-bit resolution, powered by 24 V DC.
Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.
Analog Current Range
0 to 20 mA
Analog Outputs
4 max
Analog Voltage Range
±10 V
Data Connection
Fiber optic I/O system
Error Linearity
+/- 1 LSB
Input Delay
0.7 ms (RC network), 6.8 ms (input latch)
Input Specifications
24 V DC, 10 mA with digital filter
Input Switching Voltages
0 - 8 V = LOW, 15 - 24 V = HIGH
Inputs/outputs
16, configurable with LED state indicators
Output Specifications
24 V DC, max. 500 mA, short-circuit proof
Physical Dimensions
270 mm x 76 mm x 68 mm
Power Supply Voltage
24 V DC (±10%)
Resolution
12 Bit
Rise Time
10 μs (from -10 V to +10 V)
Transmission Rate
2.5 MBaud, 25 μs for 32-bit data
