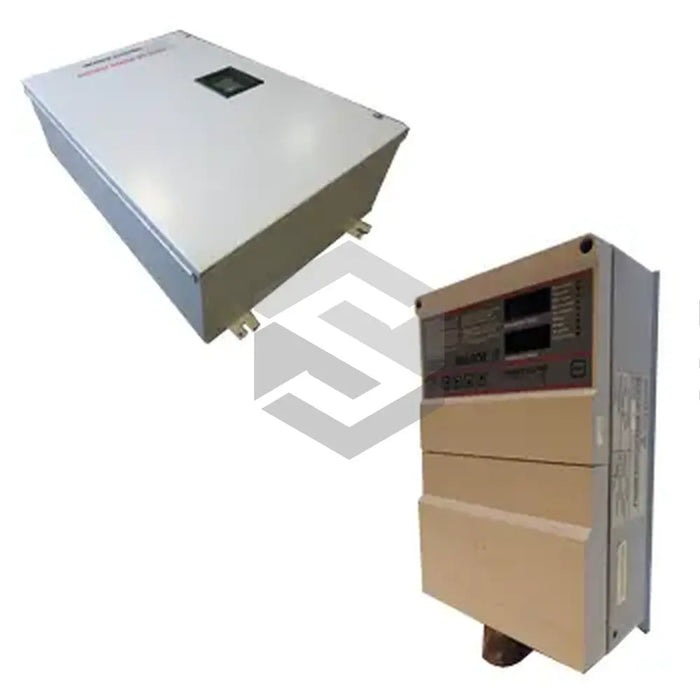

S image of M4415-00020A

M4415-00020A

by Kollmorgen
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The M4415-00020A, crafted by Kollmorgen, is a cutting-edge, 3-phase DC drive module, built with application flexibility and accuracy in mind. It operates via a keypad control, thus making analogue adjustments unnecessary. Particularly useful for industries like material handling, metal forming, and processing systems, the unit can connect directly to host computers and PLC networks by virtue of an RS 485 port. A self-tuning current loop enables robust response throughout extensive speed variations. It also fosters easy programmability, achieved through a 4-key control panel and user-friendly function menus. Some key features include field loss protection, minimum and maximum speed tweaks, isolated control signal, immediate overcurrent protection and operational capacity at a ratio of 50:1. With a 15 HP power rating and a 500V, non-regenerative DC power supply, it can handle 150% maximum load for 60 seconds. Sustainable in environments with 5 to 95% humidity, the model can operate effectively up to a 3300 ft elevation.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Kollmorgen

Product Type

3-phase DC drive module

Model

M4415-00020A

Control

Microprocessor-based variable speed control via keypad

Communication

RS 485 port

Feature

Self-tuning current loop

Applications

Processing equipment, metal forming & material handling, textile, plastics, converting machinery, dynamometers, robotics, packaging, infeeds, balancing machines

Control Panel

4-key control panel with comprehensive display and function menus

Standard Features

Field loss protection, selectable IR compensation, minimum & maximum speed adjustments, isolated control signal, immediate overcurrent protection, digital control of drive parameters

Load Capacity

Maximum of 150% for 60 seconds

Speed Range

Motor-dependent, 50:1

Indicators

LED status indicators

Power Rating

15 HP

Power Supply

Non-regenerative DC 500 Volts

Features

Dynamic braking resistor, Armature power contactor

Humidity Rating

5 – 95 % (non-condensing)

Elevation

Up to 3300 ft without derating

Ambient Temperature

0 – 40 degrees C for enclosed units and 0 – 55 degrees C for chassis units.
