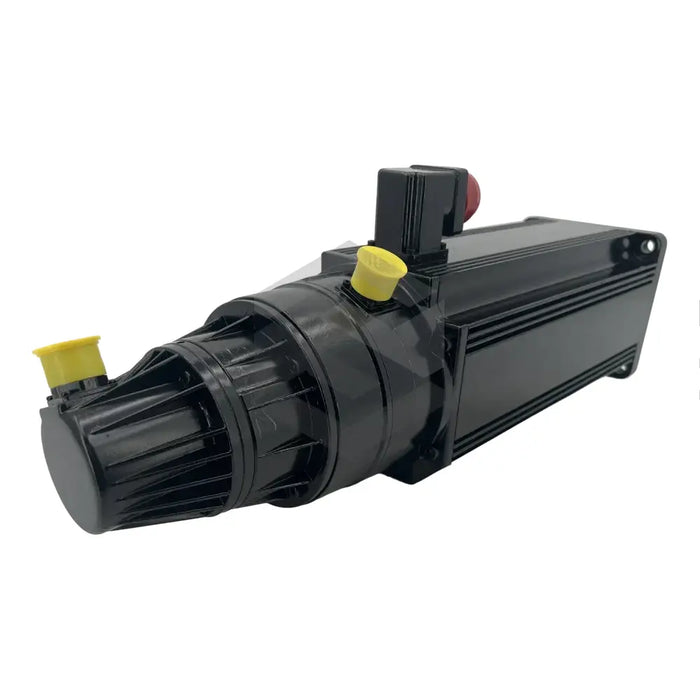

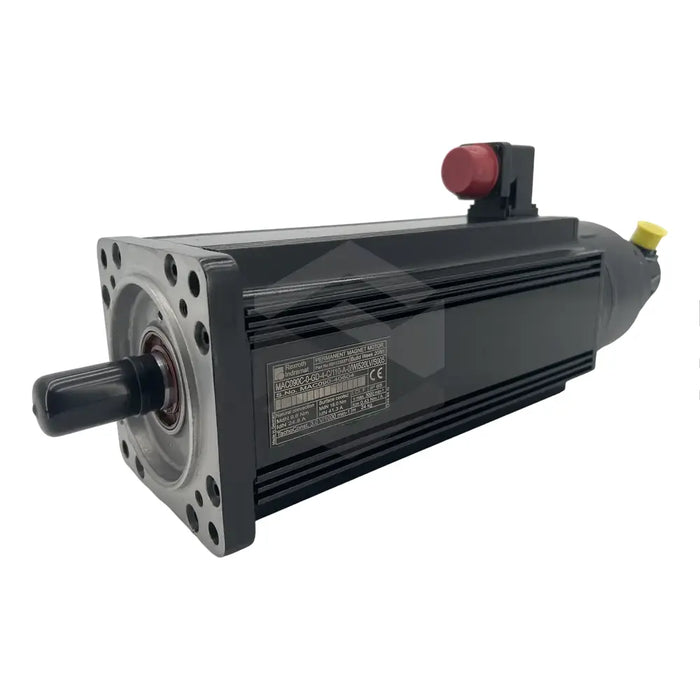

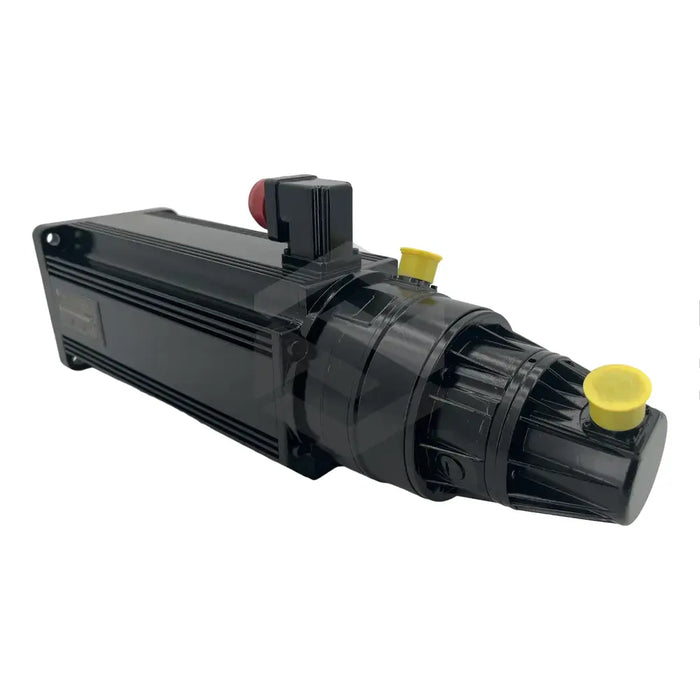

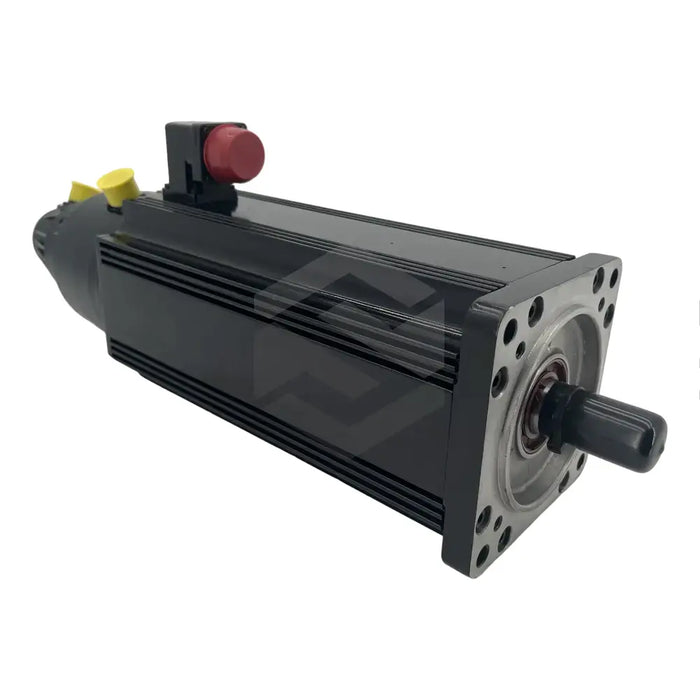

C image of MAC090C-0-GD-4-C/110-A-1/WI520LV/S005 | Main (Front Left)

MAC090C-0-GD-4-C/110-A-1/WI520LV/S005

by Bosch Rexroth Indramat
$7,856.13 - $7,856.13
$7,856.13
$7,856.13 - $7,856.13
$7,856.13

In Stock, Ships Fast

The MAC090C-0-GD-4-C/110-A-1/WI520LV/S005 is a high-performance AC servo motor from Bosch Rexroth Indramat, designed for industrial automation applications like robotics and printing presses. This motor operates optimally within an ambient temperature range of 0 to +45°C and is suitable for installation up to 1000 meters above sea level. It features a class F insulated housing, coated in RAL 9005 black, and a lifetime lubricated bearing to support smooth operation at a nominal speed of 3,000 RPM. The motor delivers a continuous torque of 9.6 Nm at standstill, with a peak current of 196 A. Weighing 23 kg, it includes a 110 mm centering diameter and power connectors on its housing's A-side. This model integrates a standard tacho-feedback module and is compatible with TDM, KDS, and DSC drive controllers, ensuring precise motor output control.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Type

Servo Motor

Model

MAC090C-0-GD-4-C/110-A-1/WI520LV/S005

Application

Industrial Automation

Temperature Range (Operation)

0 to +45 degree Celsius

Temperature Range (Storage)

-20 to +80 degree Celsius

Power Source

AC

Installation Height

Max 1000 meters above sea level

Housing Insulation

Class F

Housing Color

Prime Black (RAL 9005)

Nominal Speed

3000 RPM

Continuous Torque

9.6 Nm

Continuous Current

24.8 A

Mass

23 kg

Thermal Time Constant

60 minutes

Maximum Pulse Current

196 A

Centering Diameter

110 mm

Power Connector Location

A side of housing

Feedback System

Standard Tacho-Feedback with Encoder

Compatible Controllers

TDM, KDS, DSC by Rexroth
