MAC093C-1-FS-3-C/130-A-0

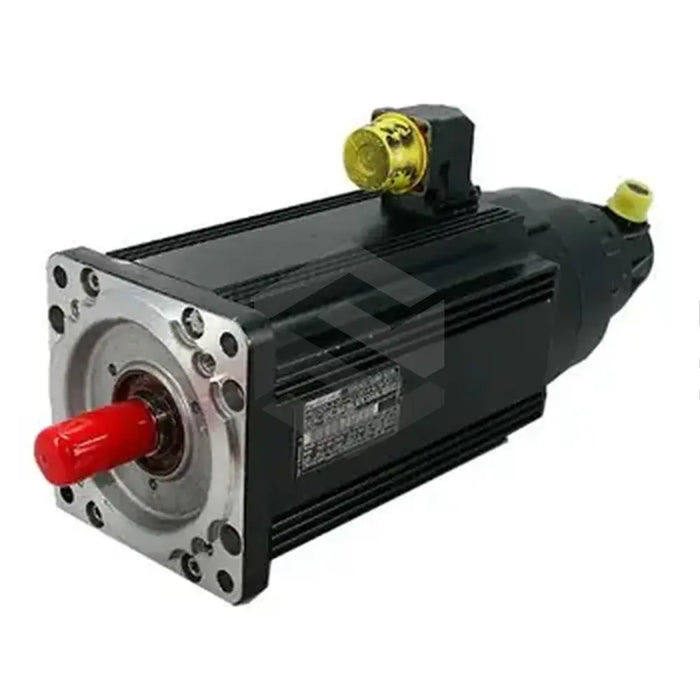

The Bosch Rexroth Indramat MAC093C-1-FS-3-C/130-A-0 is an AC servo motor designed for precision applications, receiving power from an AC supply to produce mechanical output with a torque constant of 579 x 10^-3 Nm/A at 20°C. It operates at a maximum speed of 3000 rpm, features surface cooling, and has no holding brake. Its continuous torque and current at a standstill are 28 Nm and 50 A. The motor includes tacho feedback and a second shaft end, with its power and feedback connections facilitated via connectors on flanged sockets. It incorporates thermo switches in the motor windings and stator housing to prevent overload. This motor weighs 22 kg, has a moment of inertia of 0.0042 kgm², and features class F insulation for temperatures up to 155°C. It has a winding resistance of 175 x 10^-3 ohms, inductance of 0.0029 H, and a black RAL 9005 housing coat, suitable for installation up to 1000 meters above sea level, operational between 0°C and 45°C.
