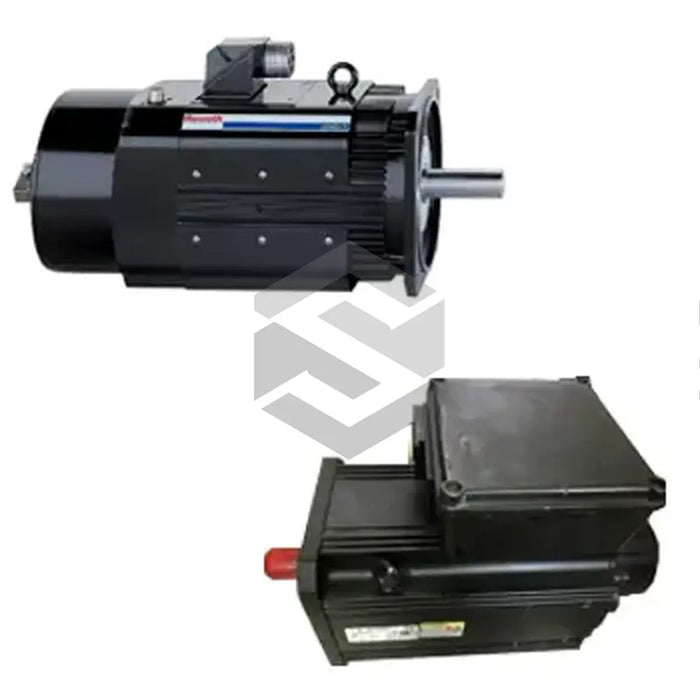

S image of MAD100B-0100-SA-S2-EH1-05-N1

MAD100B-0100-SA-S2-EH1-05-N1

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The MAD100B-0100-SA-S2-EH1-05-N1 servo motor, a component of the Bosch Rexroth IndraDyn A series, is engineered for high-precision industrial applications such as machine tools, paper processing equipment, food packaging, and metal-forming machinery. With a maximum speed of 1000 rpm, a torque estimate of 31 Nm, and rated power of 3.2 kW, the motor is capable of undertaking rigorous duties. It is designed to ingest a rated current of 8.9 A and withstand an ongoing current of 9.4 A, generating an ultimate torque of 75 Nm at a derating speed of 500 rpm. For efficient control and monitoring, additional sensors and actuators may be required. Only the compatible software and firmware should be used, and the authorized parts listed in the provided documentations. Its functioning is maintained safely and efficiently under certain conditions of temperature, IP class, humidity, and EMC standards to enhance the motor's reliability and lifespan.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Name

MAD100B-0100-SA-S2-EH1-05-N1 Servo Motor

Application

High-precision industrial applications

Maximum Speed

1000 rpm

Estimated Torque

31 Nm

Rated Power

3.2 kW

Rated Current

8.9 A

Sustained Current

9.4 A

Sustained Torque

34 Nm

Ultimate Torque

75 Nm

Derating Speed

500 rpm

Pole Pairs

3

Torque Constant

4.31 Nm/A at 20°C

Series

IndraDyn A

Usage

Rotary main-spindle & servo-drive motor

Typical Applications

Machine tools, Printing & Paper Processing Equipment, Food Packaging and Processing Equipment, Metal-forming Equipment

Power and Connections

Motor types with different driving powers & connections for various uses

Software and Firmware Compatibility

Configurations and component combinations as detailed in the relevant function descriptions

Setup Requirements

Drive controller setup prior to motor operation

Operating Conditions

Assembly, installation, & ambient circumstances indicated including certain temperature, IP class, humidity, & EMC standards.
