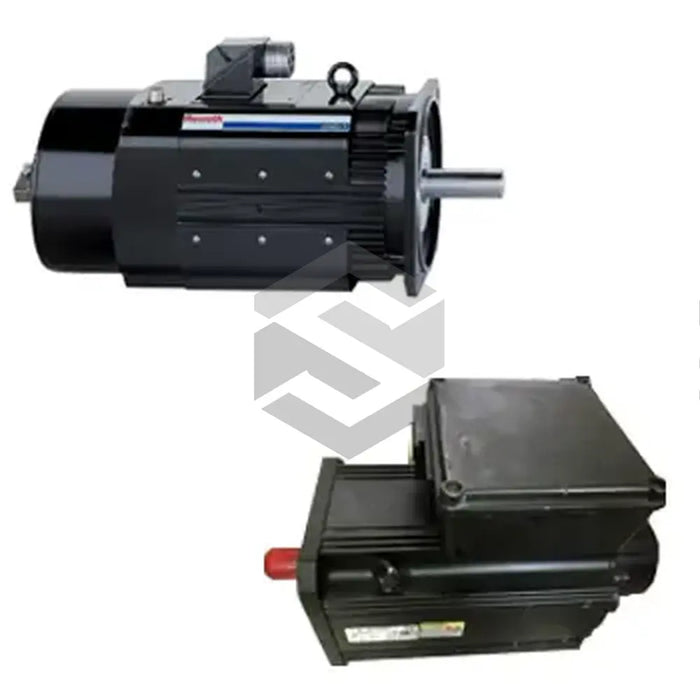

S image of MAD100B-0150-SA-M2-AK0-05-N1

MAD100B-0150-SA-M2-AK0-05-N1

by Bosch Rexroth Indramat
$4,499.97 - $9,030.56
$4,499.97
$4,499.97 - $9,030.56
$4,499.97

In Stock, Ships 1 - 3 Days

Produced by Bosch Rexroth Indramat, the MAD100B-0150-SA-M2-AK0-05-N1 is part of the IndraDyn A range of asynchronous box motors. This motor employs a squirrel-cage rotor and includes a fixed blower unit for surface cooling. Characteristics such as a low maintenance structure, compact size, and an efficient design with IP65 rating for both the motor and fan make it ideal for a multitude of industrial machines, such as metal-formers and paper processors. Its motor length is B, frame size is 100, and the winding is 0150. This unit does not include a holding brake, but it features a shaft-sealed, flange-mounted output shaft which is half-key balanced. The power connector is located on side A. The motor also includes a multiturn absolute encoder, providing 2048 increments according to the EndDat2.1 standard. Weighing 43kg, its speed range is from 1500 to 9000 rpm, with a 30-minute thermal time constant and a duty cycle time of 10 minutes.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Line

IndraDyn A

Product Type

Asynchronous Box Motor

Cooling System

Surface Ventilation via Attached Blower

Motor Length

B

Motor Frame Size

100

Winding

0150

Mounting Style

Flange

Brake

No Brake

Shaft

Keyed, Balanced with Half Key

Sealing Ring

Included

Electrical Power Connector Location

Side A

Encoder

Multiturn Absolute, 2048 Increments, EndDat2.1 Specification Compatible

Weight

43kg

Rated Speed

1500 rpm

Max Speed

9000 rpm with Bearings

Thermal Time Constant

30 Minutes

Duty Cycle Time

10 Minutes

Discharge Capacity

6 nF

Moment of Inertia

0.019 kgm2

Number of Pole Pairs

3

Torque Constant at 20C

3.03 Nm/A

Insulation Class

F

Ambient Temperature Range

0 to 40 Degrees Celsius

Protection Rating

IP65 for Motor and Fan
