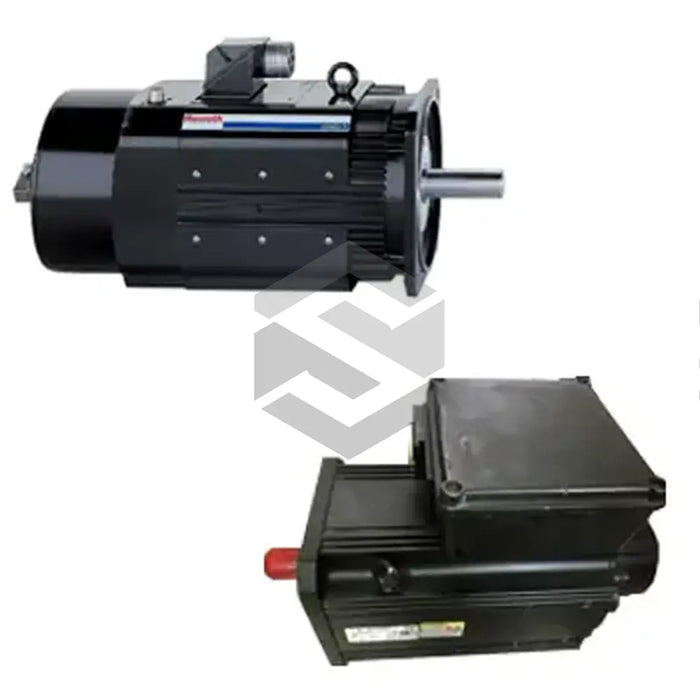

S image of MAD100C-0150-SA-S2-BQ0-05-N1

MAD100C-0150-SA-S2-BQ0-05-N1

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The MAD100C-0150-SA-S2-BQ0-05-N1 is a spindle motor from the MAD series, produced by Bosch Rexroth Indramat. It's a housed asynchronous motor with an integrated blower for cooling. It utilizes a 100-sized 'C' length motor frame and achieves a rated speed of 1500 RPM thanks to its 0150 winding. It contains an axial cooling fan system and a Singleturn Absolute (SA) encoder with 2048 increments. The electric connection is located on the B-side and the output shaft is balance-keyed, without a shaft seal. This model does not include a holding brake, but has a standard bearing and mounts using a flange. It adheres to IEC 60034-1 for motor data, offering a rated torque of 48 Nm, a power rating of 7.5kW, and a rated current of 19.7 A, amongst other features. Before distribution, all units undergo thorough testing to ensure operational safety and reliability.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

MAD Series Spindle Motor

MAD100C-0150-SA-S2-BQ0-05-N1

Motor Type

Blower-cooled, housed asynchronous motor

Motor Frame Size

100

Motor Frame Length

C-length

Rated Speed

1500 RMP

Cooling System

Axial fan, Blowing (SA)

Encoder

Singleturn Absolute (SA), EnDat2.1 with 2048 increments

Electrical Connection

B-side Connector

Output Shaft

Without sealing ring, entire key balanced

Mounting

Flange mounting

Holding Brake

Absent

Bearing Option

Standard

Vibration Severity Grade

1

Rated Torque

48 Nm

Rated Power

7.5 kW

Rated Current

19.7 A

Continuous Torque at Standstill

50 Nm

Derating Speed

1000 RMP

Continuous Current at Standstill

20.3 A

Operational Safety and Reliability

100% tested before marketing
