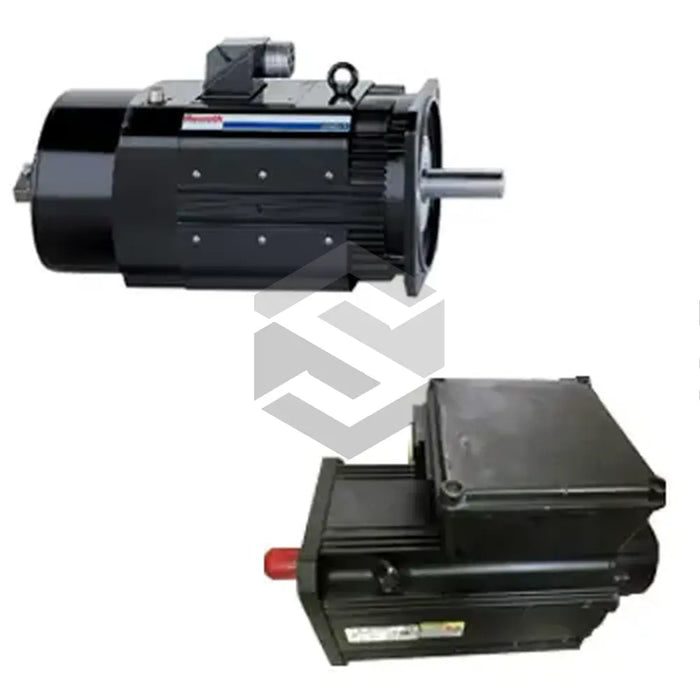

MAD100C-0150-SA-S2-BQ0-35-N1
The MAD100C-0150-SA-S2-BQ0-35-N1 is an advanced, high-throughput motor from the MAD range, produced by Bosch Rexroth Indramat, suitable for rigorous servo and main spindle applications in machinery such as printing presses and handling equipment. The apparatus is designed with a squirrel-cage rotor and a supplementary axial fan, allowing for effective heat dissipation avoiding overload damage under unfolding loads. Flaunting an IP 65 protective design, the instrument remains undamaged in tough environments plagued by dust or water jets. Its compact design permits installation in varying setups, including space-constrained environments. The motor is size 100 with a C frame length and features a single-turn absolute encoder utilizing an EnDat2.1 interface for feedback. With flange and foot mounting options, it ensures flexible installation, and power connectors on Side B enhance user convenience. The output shaft is balanced with a full key, fitting for form-locking torque transmission. Without a holding brake, but equipped with a majority bearing, the motor allows quiet operation and high speeds, rated for a nominal speed of 1,500 min-1, maximum speed of 9,000 min-1, nominal torque of 48.0 Nm, maximum torque of 110.4 Nm, and a current rating of 19.7 A.
