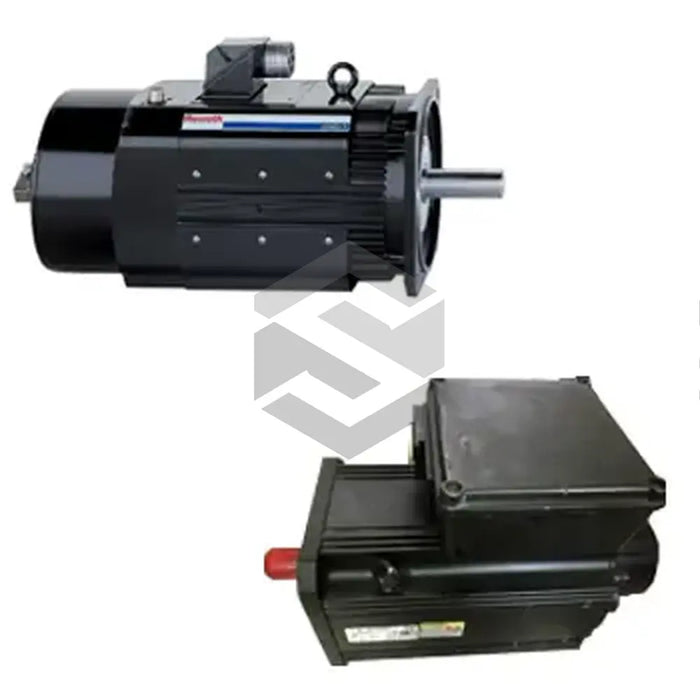

series image of MAD100C-0250-SA-M2-EH0-05-N1

MAD100C-0250-SA-M2-EH0-05-N1

by Bosch Rexroth Indramat
Request a quote
The MAD100C-0250-SA-M2-EH0-05-N1 is a Spindle Motor from the MAD series crafted by Bosch Rexroth Indramat. It includes an integrated fan unit in its design and utilizes an air-cooling system alongside an axial blower, absolute and incremental encoder. The construction allows for easy handling with a standard bearing and mounting design flange. It achieves a rated torque of 40 Nm and a speed of 2500 RPM, with a power rating of 10.5 kW. It operates at a rated current of 27.8 A, and when idle, it holds a continuous torque of 45 Nm and current of 28.3 A. Maximum speed is 99 Nm with a derating speed of 2000 RPM, and it features a torque constant of 2.23 Nm/A at 20°C with 3 pole pairs. For safe installation and maintenance, trained personnel are required, using only Rexroth-approved accessories and spare parts.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • MAD-series Component: MAD100C-0250-SA-M2-EH0-05-N1
  • Type: Spindle Motor
  • Cooling System: Air-cooled
  • Features: Axial blower, absolute and incremental encoder
  • Mount Design: Standard Bearing with Flange
  • Rated Torque: 40 Nm
  • Rated Speed: 2500 RPM
  • Rated Power: 10.5 kW
  • Rated Current: 27.8 A
  • Continuous Torque at Standstill: 45 Nm
  • Continuous Current at Standstill: 28.3 A
  • Maximum Speed: 99 Nm
  • Derating Speed: 2000 RPM
  • Torque Constant at 20°C: 2.23 Nm/A
  • Number of Pole Pairs: 3 P
  • Mounting Requirements: Technical Safety Guidelines adherence, Safe Work Practices, Use only approved Rexroth parts and accessories.
