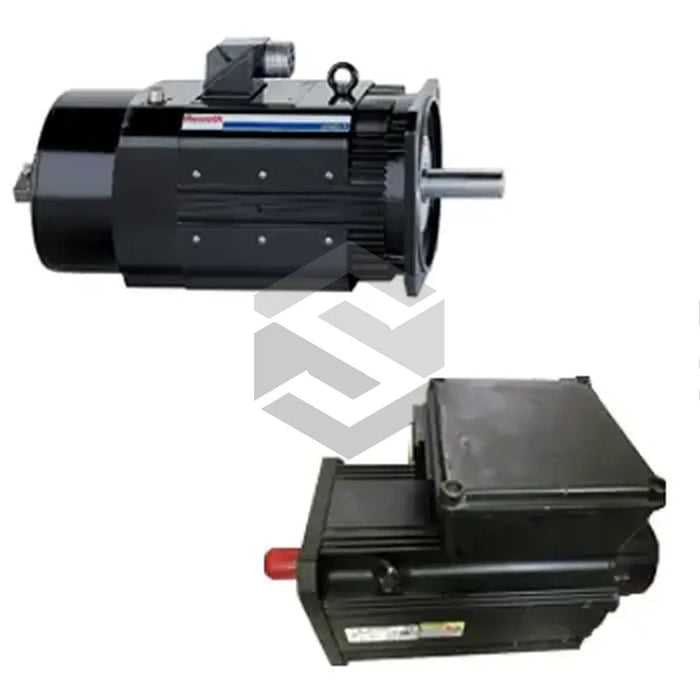

S image of MAD100D-0100-SA-S2-BQ0-05-A1

MAD100D-0100-SA-S2-BQ0-05-A1

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The MAD100D-0100-SA-S2-BQ0-05-A1, a product of Bosch Rexroth Indramat, is an advanced asynchronous motor from the Indra Dyn A series. Featuring a squirrel-cage rotor, this motor uses a fan unit for surface ventilation. It can function as a main or servo drive, ideal for various rotary operations used in machine tools, printing, paper processing, packaging, food production, and metal forming machines. It boasts an IP 65 rating, which permits it to operate effectively even in harsh conditions. The unit's construction facilitates easy maintenance and repairs. Its operating ambient temperature ranges from 0 to +40 degrees Celsius. This 72 kg motor has a flange mounting and includes an axial fan flow system and a single turn absolute encoder EnDat2.1 with 2048 increments. Its key balanced shaft lacks a sealing ring. It has a rated torque of 64 Nm, and its thermal time constant and duty cycle time (S6-44%) are 30 minutes and 10 minutes, respectively. Optional accessories such as the labyrinth seal, planetary gearbox, or worm gear are also available.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

Military Grade
Packaging

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Code

MAD100D-0100-SA-S2-BQ0-05-A1

Motor Generation

Indra Dyn A

Motor Type

Asynchronous Box

Rotary Operation Possibility

Main or Servo drives

IP Rating

IP 65

Ambient Operating Temperature

0 to +40 degree Celsius

Weight

72 kgs

Mounting Type

Flange

Cooling System

Axial Fan Flow

Encoder Type

Single Turn Absolute Encoder EnDat2.1

Encoder Increments

2048

Shaft Type

Balanced With Entire Key Without Sealing Shaft Ring

Duty Cycle Time (S6-44%)

10 minutes

Rated Torque

64 Nm

Torque Constant at 20 degree Celsius

4.5 Nm/A

Thermal Time Constant

30 min

Discharge Capacity

11 nF

No. Of Pole Pairs

3

Power Wire Cross Section

2.5 mm2

Rotor Moment of Inertia

0.0392 kgm2

Optional Accessories

Labyrinth Seal, Planetary Gearbox, Worm Gear
