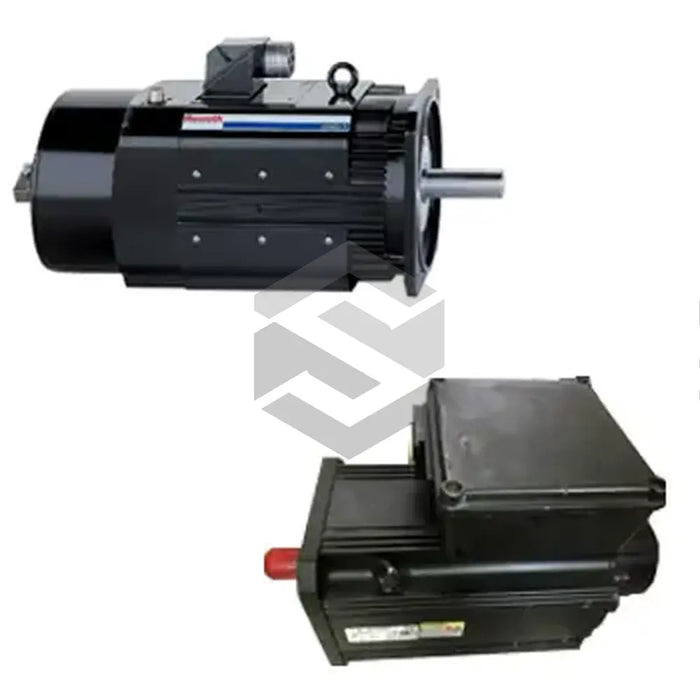

S image of MAD100D-0100-SA-S2-HP0-35-N1

MAD100D-0100-SA-S2-HP0-35-N1

by Bosch Rexroth Indramat
$0.00 - $0.00
Request a Quote
$0.00 - $0.00
Request a Quote

Request a quote

Add a Message
The MAD100D-0100-SA-S2-HP0-35-N1 is an advanced industrial motor manufactured by Bosch Rexroth Indramat. Operating at a rated speed of 1000 rpm, the motor generates a torque of 64 Nm and an estimated power of 6.7 kW at an 18.0 A rated current. It has three pole pairs for enhanced performance and efficiency and delivers steady torque at 70 Nm. With IP65 protection and insulation class "F", it ensures durability and protection against water and dust, making it suitable for different industrial environments. It features a passive air-cooling system with a stationary fan, and requires 2.8 liters of coolant per minute to offset power loss. Its maximum velocity is 8000 rpm and features an 8 kg holding brake. However, physical alterations without explicit permissions are prohibited and it is critical to follow Bosch Rexroth's installation and safety guidelines for optimal and secure performance.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Code

MAD100D-0100-SA-S2-HP0-35-N1

Purpose

Industrial Applications

Rated Speed

1000 rpm

Rated Torque

64 Nm

Estimated Power

6.7 kW

Rated Current

18.0 A

Derating Velocity

500 rpm

Current at Standstill

19.0 A

Even Torque

70 Nm

Torque Variable at 20C

4.5 Nm/A

Maximum Torque

146 Nm

Number of Pole Pairs

3

Maximum Velocity

8000 rpm

Holding Brake Capability

8 kg

Permitted Braking Energy

30,000 Ws

Coolant Requirement

2.8 liters per minute

Power Loss

1.9 kW

Protection Assessment

IP65

Insulation Class

F

Cooling System

Passive Air-Cooling System

Operating Environment Restrictions

Prohibited in extreme temperatures or underwater

Expected Lifespan

Depends on correct installation and maintenance
