MAD100D-0150-SA-S2-AG0-05-A1

Request a quote

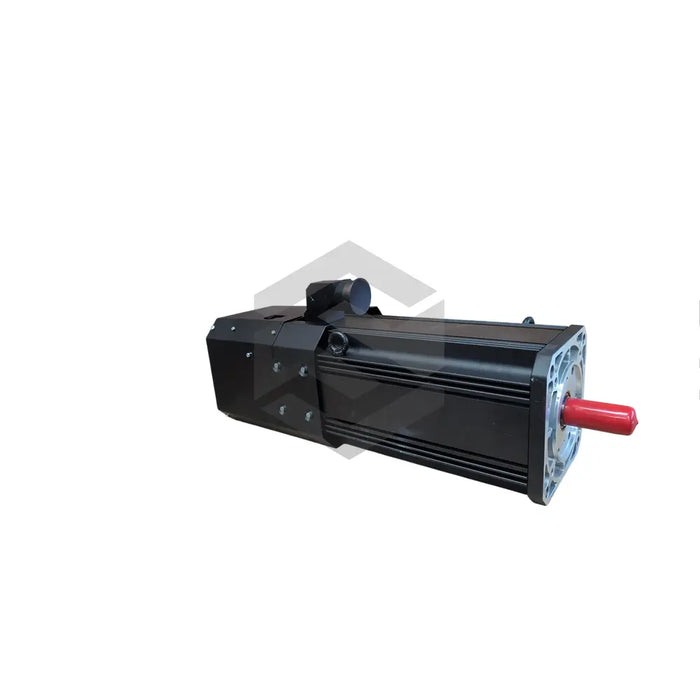

The MAD100D-0150-SA-S2-AG0-05-A1 is a high-performance asynchronous motor produced by Bosch Rexroth Indramat, a renowned industry leader in creating sustainable and economically beneficial industrial automatization components. Possessing various winding lengths, this machine offers outstanding operation smoothness due to its standard A-side bearing. Its brushless design characterizes its maintenance-free nature, saving extra costs and time, and it yields a commendable 59 Nm of rated torque with a current usage of 24.7 A. It further provides up to 9.27 kW of power when functioning within a 0 to +40 degree Celsius environment. With its IP65 safety grade and its compact design that limits noise to a 70 (+3) dB[A], the unit promotes robustness and performance while maintaining a quiet operation. The motor weighs 72 kg and features a single-turn absolute encoder delivering a high-resolution performance of 2048 incremental steps for precision. Housing is optimized for surface cooling with an axial fan.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Model: MAD100D-0150-SA-S2-AG0-05-A1
  • Product Type: Asynchronous Motor
  • Ambient Temperature: 0 to +40 degree Celsius
  • Design: Brushless, standard bearing at A-side
  • Rated Torque: 59 Nm
  • Current Consumption Rate: 24.7 A
  • Rated Power: 9.27 kW
  • Safety Class: IP65
  • Noise Level: 70 (+3) dB[A]
  • Housing Design: Tightly sealed, suitable for direct machine area placement
  • Encoder Type: Single-Turn Absolute
  • Encoder Resolution: 2048 incremental steps
  • Weight: 72 kg
  • Mounting Style: Flange with four holes
  • Cooling Type: Surface with axial fan.
