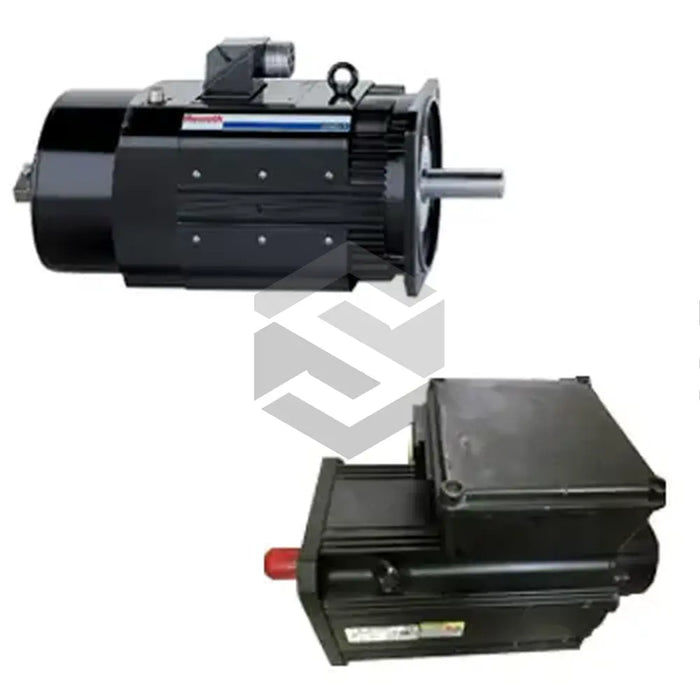

series image of MAD100D-0200-SA-M2-AP0-05-N1

MAD100D-0200-SA-M2-AP0-05-N1

by Bosch Rexroth Indramat
Request a quote
The MAD100D-0200-SA-M2-AP0-05-N1, developed by Bosch Rexroth Indramat, is an advanced asynchronous motor designed for industrial applications. Part of the MAD series, it features a size of 100 and length code D. The motor utilizes a 0200 winding type suitable for diverse operational needs and includes an axial fan for effective cooling. The motor also comes equipped with a multiturn absolute encoder, EnDat2.1, offering 2048 increments for precise position control. It features an A-side electrical connector for easy connection, while a plain-driven shaft with a sealing ring enhances durability. Notably, the motor lacks a holding brake, making it lightweight for applications that do not require braking. Flange mounting ensures easy installation, and standard bearings guarantee reliability. With a maximum speed of 130 Nm and a torque constant of 2.62 Nm/A at 20°C, this motor delivers high performance, making it ideal for automating equipment and robotics in industrial settings.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Series: MAD
  • Motor Size: 100
  • Length Code: D
  • Winding Type: 0200
  • Cooling Method: Axial Fan
  • Encoder Type: Multiturn Absolute Encoder EnDat2.1
  • Encoder Resolution: 2048 Increments
  • Electrical Connection: A-side Connector
  • Driven Shaft Type: Plain with Shaft Sealing Ring
  • Holding Brake: None
  • Flange Mounting: Yes
  • Bearings: Standard
  • Maximum Speed: 130 Nm
  • Torque Constant: 2.62 Nm/A
  • Operating Temperature: 20 degrees C
