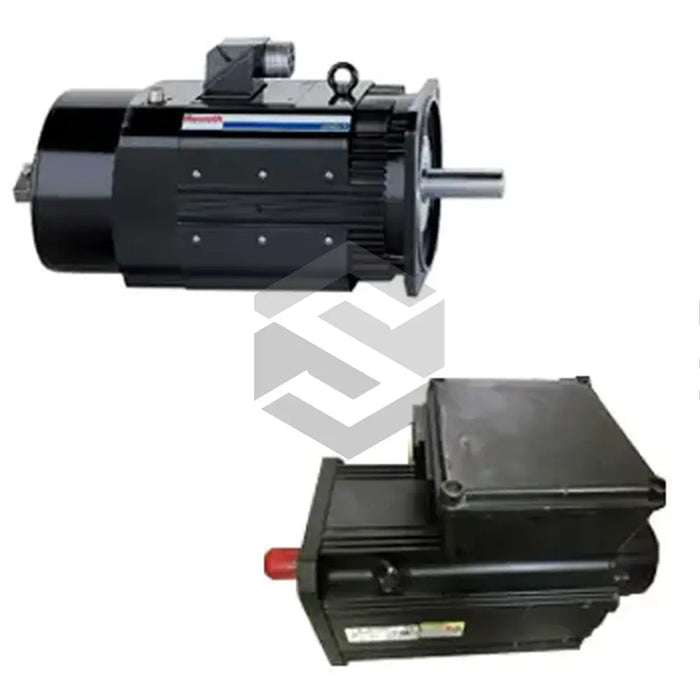

The MAD100D-0200-SA-M2-EP0-05-N1, produced by Bosch Rexroth Indramat, is a highly efficient, asynchronous motor. Functioning on a range of 230 to 480 volts, it draws approximately 27.2 amperes of current and can work optimally at a maximum pace of 9000 rpm, given its output power of 11.3 kW. Integral to its design is an INS0480 Motor flange socket and a Multiturn absolute encoder utilizing the EndDat 2.1 protocol, enabling precise data transfer. Through a frame size of 100, its construct allows easy access to the encoder connection on side A. With an IP 65 rating and a shaft sealing ring, the motor is well-protected against moisture and dirt. Additionally, a built-in axial blower aids in temperature regulation, running on a 400 Volts 3-phase supply that consumes between 83 to 100 VA of power. The motor operates best under 40 degrees celsius and should be installed no higher than 1000m above sea level for maximum protection. The MAD100D-0200-SA-M2-EP0-05-N1 is not designed for underwater use.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product code: MAD100D-0200-SA-M2-EP0-05-N1
  • Type: Asynchronous processing motor
  • Nominal speed: 2000 rpm
  • Frame size: 100
  • Socket: INS0480 Motor flange socket
  • Voltage range: 230 to 480 Volts
  • Drawn current: 27.2 Amperes
  • Max output power: 11.3 kW
  • Max speed: 9000 rpm
  • Derating speed: 1500 rpm
  • Encoder Type: Multiturn absolute encoder
  • Communication protocol: EndDat 2.1
  • Increments per revolution: 2048
  • Encoder location: Side A
  • Protection class: IP65
  • Shaft sealing: Yes
  • Cooling: Axial blower, 400 Volts 3 phase supply, 83 to 100 VA of power, 230 m³/h flow rate
  • Operating environment: Below 40 degrees Celsius, Above 1000m sea level
  • Underwater duration: 30 minutes
