MAD130B-0150-SA-M2-HH0-05-N1

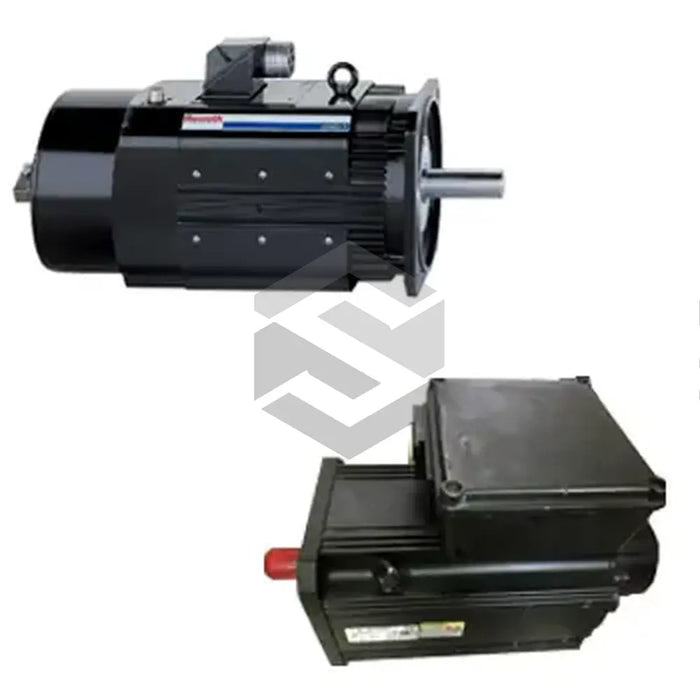

The MAD130B-0150-SA-M2-HH0-05-N1 spindle motor from Bosch Rexroth Indramat is a high-performance member of the MAD IndraDyn A Motors family, engineered for demanding automation and industrial processes. This asynchronous servo motor features a Rated Speed of 1500 rpm and delivers a continuous Torque of 15Nm at a standard Voltage of 400V supply. With a Motor Frame Size of 130 and a Motor Frame Length coded "B", the unit balances compact dimensions with robust power output. Its design includes a precision Multiturn absolute encoder EnDat2.1 offering 2048 increments for accurate position feedback, and an Axial fan cooling system to maintain temperature stability under sustained loads.
From a technical perspective, the motor’s Winding Code 0150 assures consistent performance and thermal management over extended duty cycles. The Vibration Grade R rating ensures vibration-induced wear is minimized, preserving alignment and reducing maintenance intervals. The integral Encoder Type provides high-resolution feedback for closed-loop control, while the Cooling arrangement optimizes heat dissipation. Electrical connections are facilitated via a durable Terminal box on the B-Side, supporting straightforward wiring and service. The absence of a Holding Brake simplifies the mechanical interface and reduces inertia for high-response motion profiles.
Operationally, this motor is rated to Protection IP 65, offering complete resistance to dust ingress and protection against low-pressure water jets—ideal for harsh or washdown environments. A Flange mounting style and Smooth shaft without shaft seal permit direct coupling to gearboxes, chucks, or spindles, ensuring efficient power transmission and minimal backlash. Standard Bearing Type elements deliver balanced load capacity and extended life, even under high-speed or oscillatory conditions. Cable routing and system layout are streamlined by the unit’s Connection Side placement and compact housing, enabling integration into tight machine frames without compromising service access.
Integration is seamless across a wide range of automated machinery, from CNC machine tools to robotic handling systems. The unit’s Product Type: Servo Motor designation ensures compatibility with Bosch Rexroth IndraDrive controllers and industry-standard drives. Its robust construction and precise feedback make it suitable for packaging, textile, food processing, and metalworking applications requiring rapid acceleration and repeatable accuracy. With consistent performance under continuous operation and simplified installation, the MAD130B-0150-SA-M2-HH0-05-N1 elevates system throughput and reliability in advanced industrial environments.
