MAD130C-0100-SA-M2-BH0-05-R1

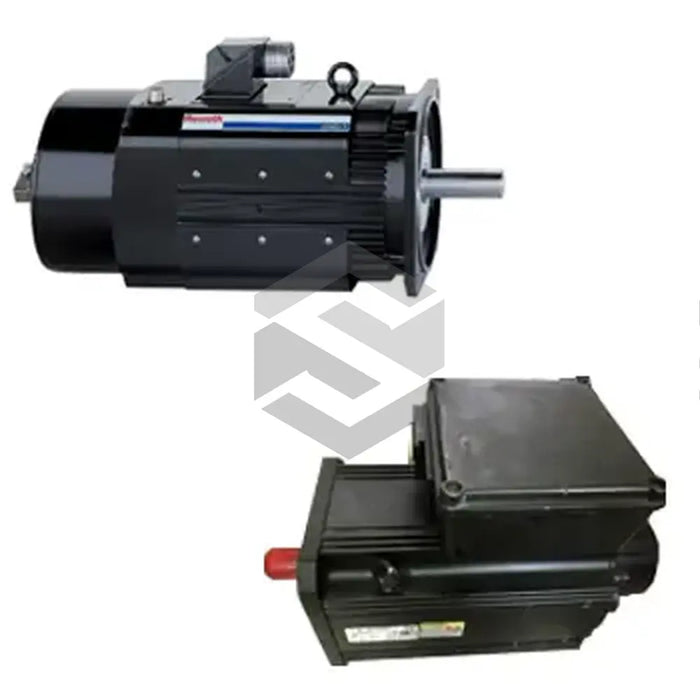

The Bosch Rexroth Indramat MAD130C-0100-SA-M2-BH0-05-R1 spindle motor is a high-performance rotary actuator in the "MAD IndraDyn A Motors" series, engineered for precision motion control in industrial automation. As the part_number MAD130C-0100-SA-M2-BH0-05-R1, this servo motor from manufacturer Bosch Rexroth Indramat delivers a series solution that balances reliable continuous operation with exceptional torque output. Rated for Rated Torque 100Nm, it sustains demanding loads while providing stable mechanical force and predictable dynamic response. The nominal design supports consistent operation under thermal stress, ensuring long-term reliability in critical production environments. Equipped with a robust construction and advanced cooling, this motor addresses both performance and maintenance requirements in modern machine tool, robotics, and packaging systems.

The MAD130C-0100-SA-M2-BH0-05-R1 is characterized by a suite of precise technical specifications tailored for rigorous industrial use. Key parameters include a Bearing Type for clutch mounting and an active Cooling mode via an axial fan that optimizes thermal management. The device connects on the Connection Side B-side and features a multiturn absolute encoder conforming to EnDat2.1, designated as Encoder Type. The motor frame is defined by Motor Frame Length C and Motor Frame Size 130, paired with a Mounting Style flange mounting interface. A Shaft Type smooth shaft without seal facilitates mechanical integration, while the absence of a Holding Brake simplifies design for applications that do not require static holding force. The Winding Code 0100 identifies the internal coil configuration that achieves rated performance, and the unit is classified as Product Type servo motor. Additional ratings include Vibration Grade R for resilience and Insulation Class F for elevated thermal endurance.

Operationally, the MAD130C-0100-SA-M2-BH0-05-R1 excels in delivering controlled dynamic behavior and high throughput. Its Moment of Inertia specification ensures controlled acceleration and deceleration, minimizing drive stress and reducing mechanical wear. The motor’s Rated Current profile supports economical operation under sustained loads, while its design mitigates overheating through the axial fan-assisted cooling system. With IP65 Protection, the unit is sealed against dust ingress and low-pressure water jets, enhancing reliability in harsh factory environments. Vibration resilience and robust structural integrity translate into reduced maintenance intervals and consistent performance in high-cycle manufacturing processes.

Integration of the MAD130C-0100-SA-M2-BH0-05-R1 within automation frameworks is facilitated by its standardized flange interface and EnDat2.1 feedback protocol. Engineers benefit from the precise position feedback of the absolute encoder, which eliminates homing sequences and enhances system uptime. The B-side connection simplifies cabling in multi-axis installations, while the smooth shaft accommodates a variety of coupling options. Ideal target applications include CNC machining centers, robotic assembly lines, automated packaging systems, and any spindle-driven process requiring high torque precision, minimal downtime, and seamless compatibility with Bosch Rexroth IndraDyn A servo drives.
