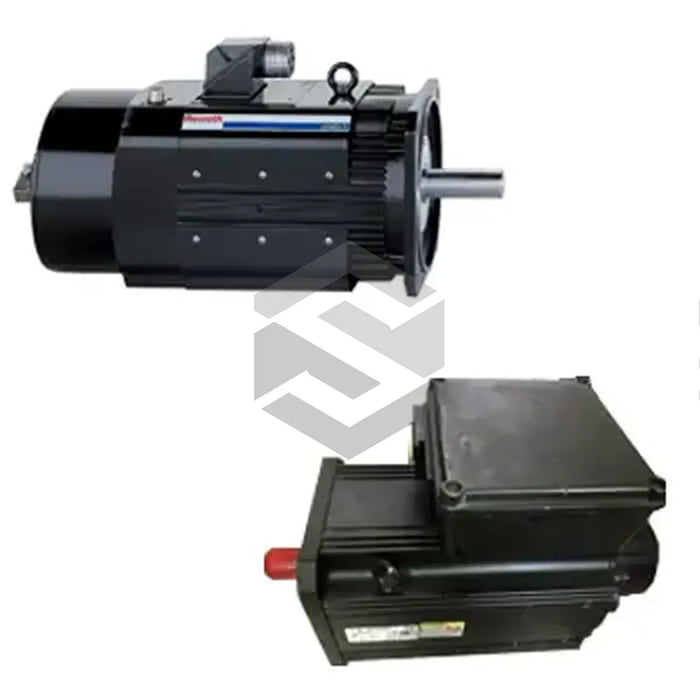

MAD130C-0150-SA-M2-BQ5-35-N1

The MAD130C-0150-SA-M2-BQ5-35-N1 spindle motor by Bosch Rexroth Indramat is a high-performance industrial actuator in the MAD IndraDyn A Motors series designed for demanding motion control and robotics applications. This Product Type servo motor features a Motor Frame Size of 130 and a Motor Frame Length of C, offering a robust mechanical footprint for flange and foot mounting. Equipped with a Multiturn absolute encoder EnDat2.1 providing 2048 increments, the motor ensures precise position feedback for complex control schemes. The integrated Axial fan cooling system maintains optimal thermal performance during continuous operation, while the Standard bearing type affords reliable support under dynamic loads. With an electrically-clamped Holding Brake and a keyed, balanced shaft without seal, the design prioritizes both safety and torsional stability for heavy-duty cycles. The Vibration Grade R rating further underlines its suitability for high-speed, high-torque environments.

Performance characteristics of the MAD130C-0150-SA-M2-BQ5-35-N1 are highlighted by its Power Rating of 18.4 kW and a Maximum Speed Rating of 7500 rpm, delivering a nominal torque of 117 Nm and a standstill torque of 125 Nm. At normal operating conditions, the motor draws 48.9 amperes and requires a driving voltage range of 160 to 480 VAC with an Operating Frequency Input of 50 to 60 Hz. The standstill current of 51 amperes ensures immediate torque availability for inertia-heavy motions. A derating rotational speed of 1000 rpm indicates the threshold for reduced performance under extended continuous duty. The Connection Side B configuration simplifies integration into multi-axis systems, and the flange interface aligns with standard mounting protocols. With a Winding Code 0150 optimized for high thermal class F insulation, the motor maintains consistent output under variable load profiles.

Designed for industrial reliability, this servo motor features an IP65 enclosure to protect against dust ingress and low-pressure water jets. The construction incorporates a whole-key balanced shaft that maximizes mechanical lifespan without the need for a separate seal. Rated for operation between 0 to 45 °C ambient temperature and storage from -10 to 80 °C, it tolerates wide environmental conditions while humidity levels between 10 to 80% ensure corrosion-free performance. Integration with Rexroth Indramat drives unlocks advanced diagnostics, auto-tuning, and real-time monitoring, streamlining preventive maintenance schedules. The MAD130C-0150-SA-M2-BQ5-35-N1 excels in CNC machinery, robotic arms, packaging lines, and high-speed assembly stations, where repeatability and uptime are paramount.
