MAD130D-0100-SA-S2-AQ0-35-N1

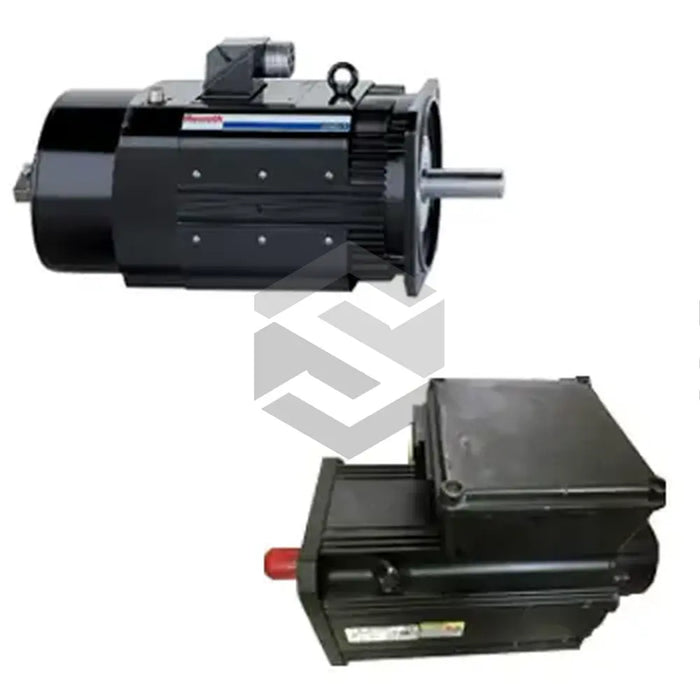

The MAD130D-0100-SA-S2-AQ0-35-N1 spindle motor by Bosch Rexroth Indramat, part of the renowned MAD IndraDyn A Motors series, represents a high-performance solution for demanding servo applications. This servo motor is built around a robust motor frame size 130 and frame length D, featuring a precise winding code 0100 for optimized electromagnetic performance. Equipped with a Singleturn absolute encoder EnDat2.1 offering 2048 increments, it ensures exceptional positional accuracy and repeatability. The motor’s cooling: axial fan design actively directs airflow along the shaft axis, efficiently dissipating heat to maintain stable operation under continuous and intermittent loads. A combined flange and foot mounting style provides flexible installation options in compact machine enclosures or integrated drive modules.

The motor delivers a rated speed of 1000 rpm under nominal conditions, with a guaranteed key speed of 500 rpm and a maximum rotational capability up to 7500 rpm for high-speed spindle applications. At standstill, it produces a continuous torque of 190 Nm while drawing a continuous current of 24.2 A, allowing rapid acceleration profiles without overheating. Electrical characteristics include a discharge capacity of 27.3 nF on the power module and a cross-section of power wire 10 mm2 to minimize voltage drop under peak load demands. Structural integrity is maintained through a standard bearing type and a whole-key balanced shaft without seal, ensuring smooth rotation and minimal vibration. The motor adheres to vibration grade R, guaranteeing reliable operation even under moderate mechanical shock.

Designed for seamless integration in automated manufacturing and process control systems, the MAD130D motor features an A-side connector for direct drive interfacing and requires no additional holding brake. Its connection type: connector simplifies wiring harnesses and service procedures. Rated for ambient temperatures from 0 to 40 °C, it withstands typical industrial environments without derating. Weighing 165 kg, the robust assembly supports heavy-duty inertia loads common in milling, grinding, and high-torque spindle tasks. By leveraging Bosch Rexroth Indramat’s proven engineering, this motor ensures long-term reliability, precise motion control, and scalable integration across a wide range of CNC, robotics, and servo-driven production equipment.
