MAD160B-0100-SA-S2-AP0-05-N1

by Bosch Rexroth Indramat
Request a quote

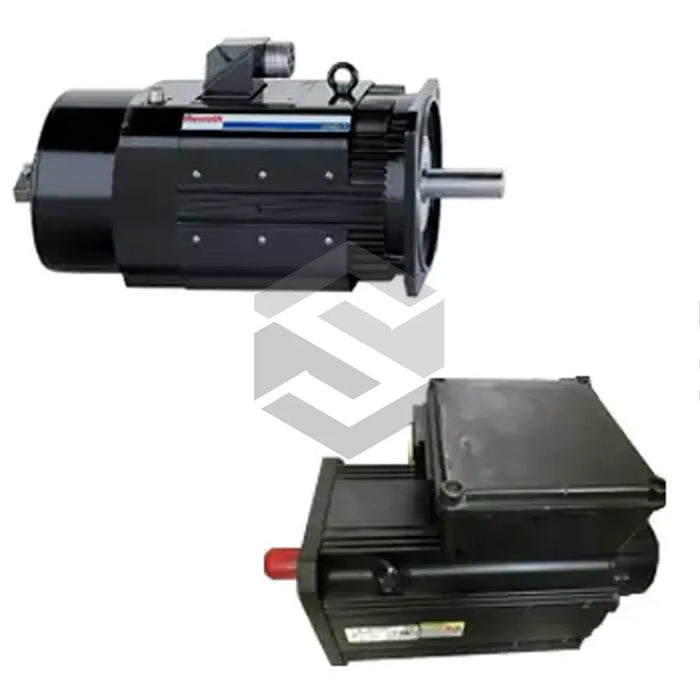

The MAD160B-0100-SA-S2-AP0-05-N1 spindle motor is a Bosch Rexroth Indramat product belonging to the MAD series. It has a 160 frame size, B motor length, an axial fan cooling system, and a 1000 min-1 speed rating generated by a 0100 winding code. The motor's rated torque is 200 Nm with a continuous standstill torque of 210 Nm and does not have a holding brake. Its rotor has a moment of inertia of 0.24 Kgm2 and weighs 197 kg, inclusive of a blower. The motor incorporates a Singleturn Absolute Encoder, EnDat2.1 with 2048 increments. The flange-mounted motor has a shaft without a sealing ring and a standard-type bearing system. It has a maximum speed of 6000 RPM and a DIN VDE 0530-1 insulation class of “F”. The motor has an IP65 protection class, and it must be sealed tightly to prevent fluid leakage, especially when used in oil coolant environments.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • MAD Series Motor Part Number: MAD160B-0100-SA-S2-AP0-05-N1
  • Motor Type: Spindle Motor
  • Winding Code: 0100
  • Rated Speed: 1000 min-1
  • Motor Frame Size: 160
  • Motor Length: B
  • Rated Torque: 200 Nm
  • Continuous Torque Constant at Standstill: 210 Nm
  • Rotor Moment of Inertia: 0.24 Kgm2
  • Mass of Rotor: 197 kg (Includes Blower)
  • Holding Brake: None
  • Cooling System: Axial Fan Blowing
  • Encoder Type: Singleturn Absolute encoder EnDat2.1(2048 Increments)
  • Electrical Power Connection: A-side Connector
  • Shaft: Without Shaft Sealing Ring, Balanced with Entire Key, No Holding Brake
  • Mounting Type: Flange Style
  • Vibration Severity Grade: 1
  • Bearing Arrangement: Standard Ball
  • Maximum Bearing Speed: 6000 RPM
  • Insulation Class: F according to DIN VDE 0530-1
  • Motor Sealing: Required when operating in areas with oily lubricating coolants
  • Protection Class: IP65
