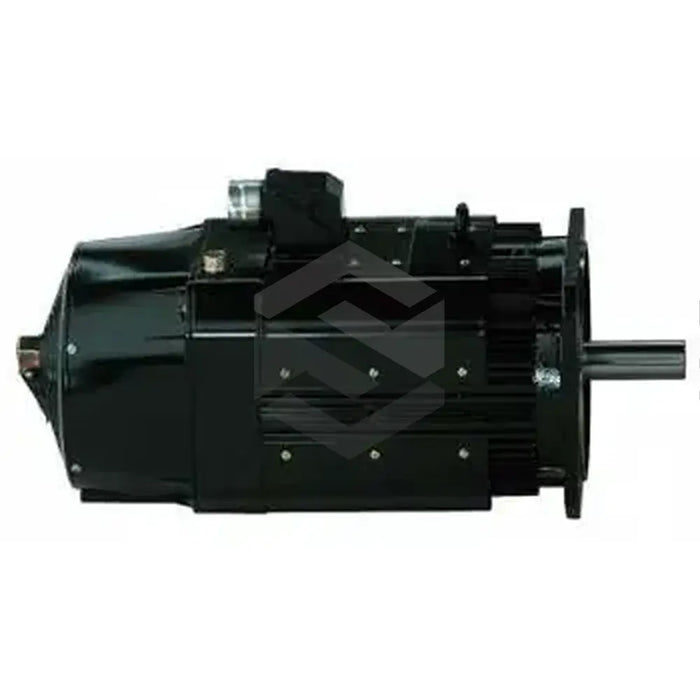

series image of MAD180C-0200-SA-M2-DH0-35-N1

MAD180C-0200-SA-M2-DH0-35-N1

by Bosch Rexroth Indramat
Request a quote
The MAD180C-0200-SA-M2-DH0-35-N1 spindle motor, produced by Bosch Rexroth Indramat, is an advanced component in the MAD series, ideal for automated machining and manufacturing settings. Featuring a 180mm construction with a compact C frame, it optimally fits dense machine configurations and operates with a 0.2 kW AC motor powered by a standard 200V single-phase input. Its integrated axial fan cooling system efficiently dissipates heat without external ducting, allowing versatile placement. The spindle motor boasts a high-resolution singleturn absolute encoder offering 2048 increment feedback for precise positioning, resilient through power cycles, and ensuring tight tolerancing in CNC tasks such as milling and drilling. Constructed with a robust cast iron housing, it incorporates strong bearings for reliable, vibration-free operations. The motor's N1 enclosure rating provides excellent protection against fluids and debris, while its durability minimizes unplanned downtime and maintenance costs, promoting high tool uptime in demanding environments.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Model: MAD180C-0200-SA-M2-DH0-35-N1
  • Series: MAD motor series
  • Frame Size: 180mm
  • Frame Length: Compact C frame
  • Motor Power: 0.2 kW
  • Motor Type: AC motor
  • Voltage Input: 200V single phase
  • Cooling System: Axial fan cooling
  • Position Feedback: Singleturn absolute encoder
  • Encoder Resolution: 2048 increments
  • Mounting Interface: Standard flange
  • Motor Housing: Cast iron
  • Enclosure Rating: N1
  • Protection: Resistant to cutting fluids, swarf, liquid/solid debris
  • Bearing Design: Enhanced durability for continuous cyclic loading
  • Application: Machining and manufacturing equipment
  • Use Case: Milling, drilling, CNC applications
  • Feedback Unaffected By: Power cycles
  • Air Exhaust: Directed through motor end
  • Vibration: Vibration-free rotation
  • Placement: Flexible placement in enclosed zones
  • Integration: Simplified mounting process
  • Performance: High tool uptime and low maintenance costs
