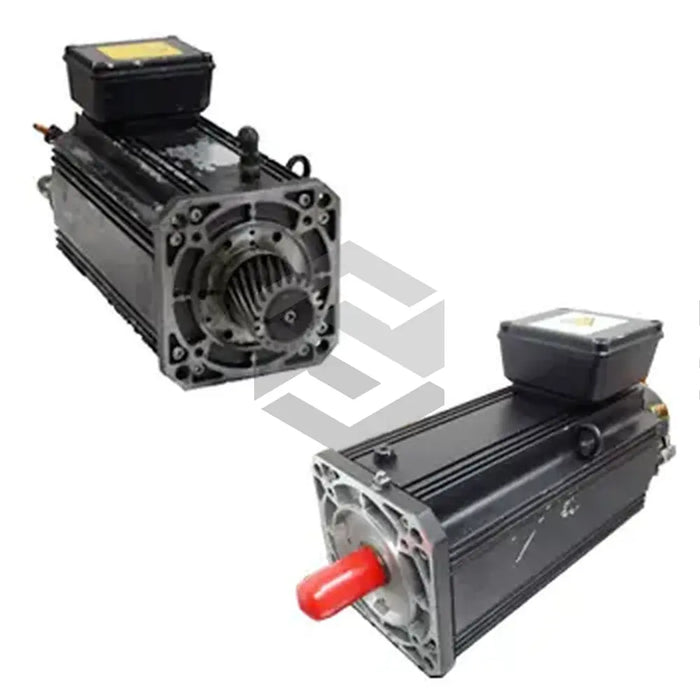

S image of MAF100B-0250-FQ-M2-AH0-05-N1

MAF100B-0250-FQ-M2-AH0-05-N1

by Bosch Rexroth Indramat
$9,182.26 - $9,182.26
$9,182.26
$9,182.26 - $9,182.26
$9,182.26

In Stock, Ships Fast

The MAF100B-0250-FQ-M2-AH0-05-N1 is an MAF series induction motor designed by Bosch Rexroth Indramat, featuring a 100 motor frame size and a B motor frame length. It operates at a rated speed of 2500 RPM, indicated by a 0250 winding code. The motor uses a liquid cooling system, an EnDat2.1, with 2048 increments multiturn absolute encoder and has a connection thread ¼". The product is characterized by a plain shaft with an A-side connector for electrical power and excludes a shaft-sealing ring. While it does not have a holding brake, it does include flange mounting and a standard ball-bearing feature in a deep-groove arrangement. The motor's performance values are computed as per IEC 60034-1, including a thermal time constant of 10 minutes and a power loss of 1.0 kW. This motor can reach a maximum speed of 84 Nm with a derating speed of 2000 RPM and has a rated torque value of 33 Nm, a current of 26 A, and a power of 8.6 kW. The continuous standstill torque is 38 Nm, and the power cable's minimum cross-section is 4 mm2.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Product Series

MAF

Motor Frame Size

100

Motor Frame Length

B

Winding Code

0250

Rated Speed

2500 RPM

Cooling System

Liquid cooling with a connection thread ¼ inch

Encoder

Multiturn absolute with, EnDat2.1, 2048 increments

Shaft Type

Plain without a shaft sealing ring

Power Connection

A-side connector

Brake

None

Mounting

Flange mounting

Bearing Arrangement

Standard ball bearing, deep-groove arrangement

Vibration Severity Grade

1

Specification Standard

IEC 60034-1

Thermal Time Constant

10 min

Power Loss

1.0 kW

Maximum Speed

84 Nm with a derating speed of 2000 RPM

Rated Torque Value

33 Nm

Rated Current

26 A

Rated Power

8.6 kW

Continuous Torque at Standstill

38 Nm

Cross-Section of Power Cable

4 mm2
