S image of MAF100D-0200-FR-S0-AH0-05-R1

MAF100D-0200-FR-S0-AH0-05-R1

by Bosch Rexroth Indramat
$5,375.00 - $17,111.33
$17,111.33
$5,375.00 - $17,111.33
$17,111.33

Available, Shipping Varies

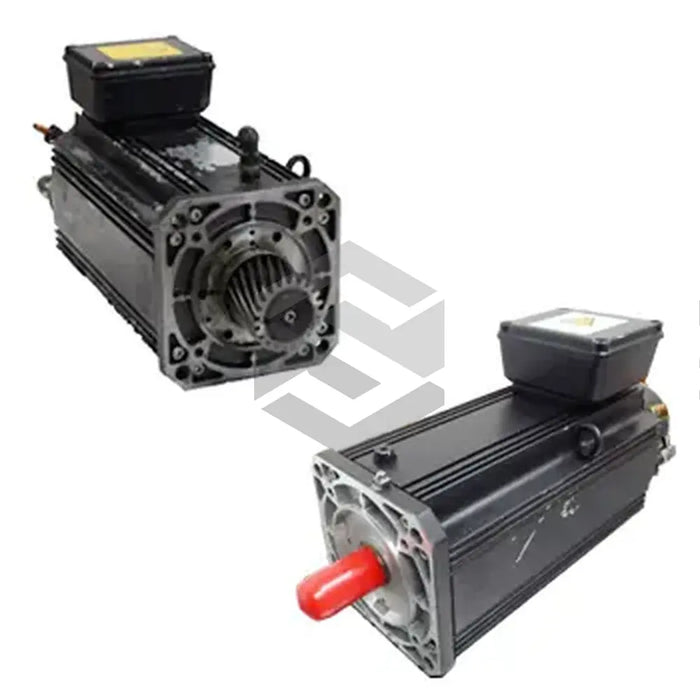

The MAF100D-0200-FR-S0-AH0-05-R1, developed by Bosch Rexroth Indramat, is an asynchronous motor with a rated speed of 2000 rpm and a standard operation speed of 1500 rpm. It features reinforced bearings with an additional cylindrical roller on the output side, designed for enhanced radial force absorption, though this reduces the grease service life by half. This motor operates solely with a continuous radial load configuration. It is flange mounted (B05), lacks a holding brake, and features a non-sealed plain shaft. Additional splash fluid protection can be integrated with an optional labyrinth seal. The motor adheres to the Class 155 insulation standard (DIN EN 60034-1) and incorporates a liquid cooling system with a 1/4 connection thread. It offers a thermal time constant of 3.5 minutes and operates at a maximum power of 34.35 kW, drawing a peak current of 91.3 A and delivering 80 Nm torque, with a mass of 64 kg and a sound pressure level of 70 dB.

Contact Us

Email: sales@servosupplier.com
Phone Number: 1-888-551-3082
International: 1-919-443-0207
Fax: 1-919-867-6204

Servo Supplier is not an authorized distributor. We sell new surplus and refurbished products. All warranties are with Servo Supplier and not the manufacturer.

2 - 4 Days
Handling Time

30 Day Warranty

Shipping Options

Payment Options

Technical Specifications

Manufacturer

Bosch Rexroth Indramat

Model

MAF100D-0200-FR-S0-AH0-05-R1

Motor Type

Asynchronous Motor

Rated Speed

2000 rpm

Speed

1500 rpm

Bearing Type

Reinforced with Cylindrical Roller and Deep-Groove Ball Bearing

Mounting Style

Flange (B05)

Holding Brake

None

Shaft

Plain without Sealing Rings

Protection Option

Labyrinth Seal (Optional)

Insulation Class

155 according to DIN EN 60034-1

Cooling Method

Liquid Cooling

Connection Thread

1/4

Thermal Time Constant

3.5 minutes

Mass

64 kg

Cycle Duration

5 minutes for S6 periodic operation at 44%

Sound Pressure Level

70 dB

Maximum Power

34.35 kW

Maximum Current

91.3 A

Rated Torque

80 Nm
