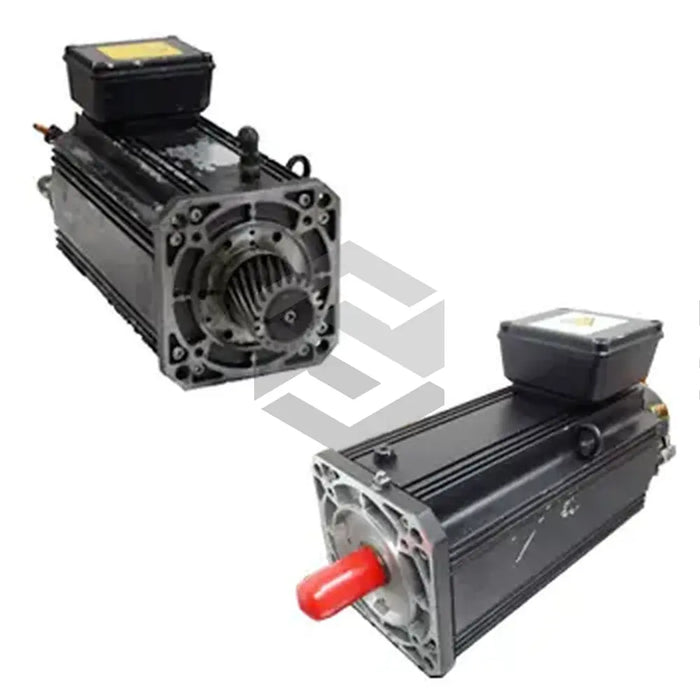

series image of MAF130B-0200-FQ-M0-AH0-05-R1

MAF130B-0200-FQ-M0-AH0-05-R1

by Bosch Rexroth Indramat
Request a quote
The MAF130B-0200-FQ-M0-AH0-05-R1 is a high-quality, liquid-cooled asynchronous motor designed by the reputable Bosch Rexroth Indramat. Renowned for experience in motion and logic control, the manufacturer endows the MAF model with a distinct cooling feature using either connection threads or quick couplers. However, additional installations like hoses and clamps are not included. This robust ATEX motor has a frame size of 130B, supports coolant temperatures of 10-40°C, and dissipates power loss of up to 2.00 kW. Performance-wise, the motor has a maximum input pressure of 6 bar, a power rating of 20.90 kW to 42.85 kW, and torque of 100 Nm that can extend up to 220 Nm. With a maximum speed of 10,000 RPM and a surprisingly light weight of 82 kg, its low rotor inertia of 0.079 kg.m2 enables swift acceleration and deceleration without holding brakes application.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Asynchronous Motor
  • Model Number: MAF130B-0200-FQ-M0-AH0-05-R1
  • Frame Size: 130B
  • Cooling Method: Liquid
  • Coolant Connection: G1/4 inch thread and 9mm slot for quick coupler
  • Power Loss Dissipation: up to 2.00 kW
  • Coolant Supply Temperature: 10 to 40 degree Celsius
  • Maximum Input Pressure: 6 bar
  • Duct Volume: 0.15 liters
  • Power Rating: 20.90 kW up to 42.85 kW
  • Torque Rating: 100 Nm up to 220 Nm
  • Maximum Speed: up to 10,000 RPM
  • Weight: 82 kg
  • Rotor Inertia: 0.079 kg.m2
