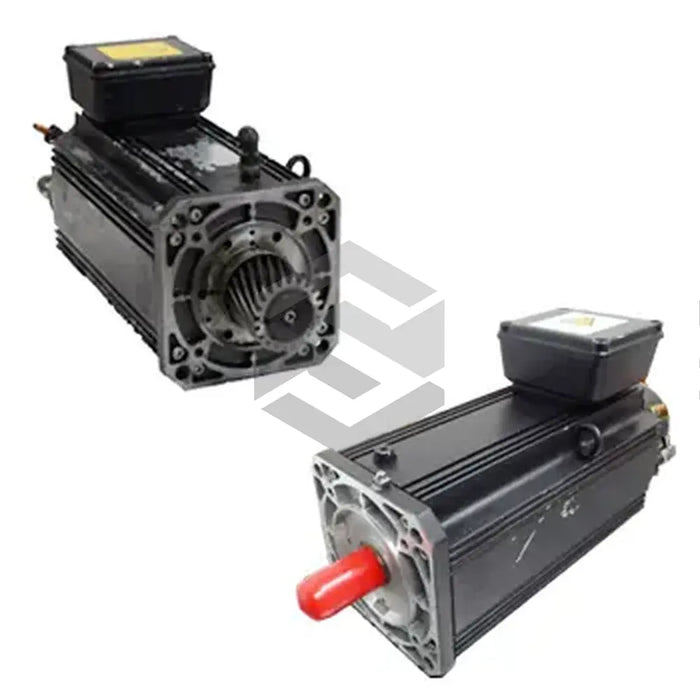

manufacturer image of MAF130D-0250-FQ-S2-KH0-35-H1

MAF130D-0250-FQ-S2-KH0-35-H1

by Bosch Rexroth Indramat
$31,200.00 - $31,200.00
$31,200.00
$31,200.00 - $31,200.00
$31,200.00
In Stock, Ships 3 - 5 Days
The MAF130D-0250-FQ-S2-KH0-35-H1 is a high-performance asynchronous motor by Bosch Rexroth Indramat, designed for demanding industrial applications requiring efficiency and precision. It delivers a rated speed of 2,500 RPM, offering a torque of 190 Nm with a power output of 49.74 kW and a current of 113 A. The motor achieves a maximum torque of 450 Nm and a peak power of 140 kW at a maximum current draw of 238 A. It features a smooth, unsealed shaft, lacks a holding brake, and includes a single-turn absolute encoder with 2048 increments using the EnDat 2.1 protocol. Engineered with a thermal time constant of 3.5 minutes, it operates in ambient temperatures from 0 to +40 degrees C with liquid cooling via a 1/4" connection thread. The motor, which uses three pole pairs and a power wire cross-section of 35 mm, is mountable via flange and foot options and maintains vibration severity classified as A per DIN EN 60034-14 standards.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Series: MAF130D
  • Motor Type: Asynchronous Motor
  • Torque: 190 Nm
  • Power: 49.74 kW
  • Current: 113 A
  • Rated Speed: 2500 RPM
  • Key Speed: 2000 RPM
  • Maximum Torque: 450 Nm
  • Peak Power: 140 kW
  • Maximum Current Draw: 238 A
  • Continuous Torque at Standstill: 195 Nm
  • Thermal Time Constant: 3.5 minutes
  • Pole Pairs: 3
  • Power Wire Cross-Section: 35 mm
  • Torque Constant at 20°C: 1.71 Nm/A
  • Moment of Inertia: 0.1510000 kg*m^2
  • Ambient Temperature Range: 0 to +40°C
  • Cooling Method: Liquid Cooling
  • Connection Thread: 1/4"
  • Shaft Type: Smooth, Unsealed
  • Holding Brake: None
  • Encoder Type: Single-Turn Absolute Encoder
  • Encoder Protocol: EnDat 2.1
  • Encoder Increments: 2048
  • Mounting Options: Flange and Foot
  • Bearings: High-Speed Bearings
  • Vibration Severity: Class A (DIN EN 60034-14)
