MAF160B-0150-FQ-S0-FQ0-35-N1

Original price $5,442.00 - Original price $5,442.00
Original price
$5,442.00
$5,442.00 - $5,442.00
Current price $5,442.00
Available, Shipping Varies

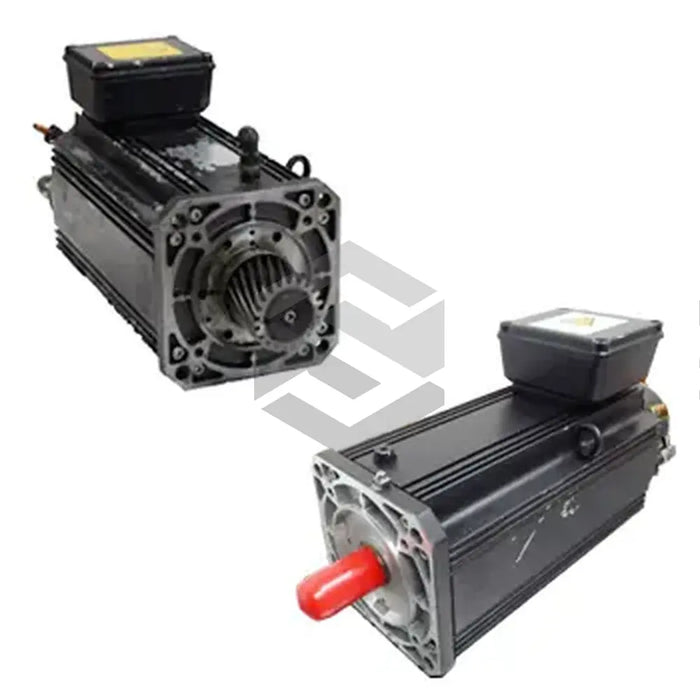

The Bosch Rexroth Indramat MAF160B-0150-FQ-S0-FQ0-35-N1 is an IndraDyn A series asynchronous motor designed for operation with an external cooling system, functioning effectively in a coolant temperature range of 10°C to 40°C. Equipped with three pole pairs, this motor features 0150 type winding and an IP65 protection rating. The accuracy of the unit's single-turn absolute encoder, having 512 increments, is +/-0.0167° absolute accuracy and +/-0.001’ relative accuracy. Ensuring reliability, it includes a 1,500RPM rated speed, 39.3kW rated power, and 89.5A rated current. This motor is compliant with DIN ISO 2373 requirements and offers an ambient operating temperature range of 0°C to 40°C. With a one year warranty period, it must only be installed in the de-energized state and in clean, dust-free environments.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Series: IndraDyn A Series
  • Motor Type: Asynchronous
  • Coolant Temperature Range: 10°C to 40°C
  • Required Tools: 1/4” Torque Screwdriver, Combination Wrench Set, 1/2” Torque Wrench with Adjustable Scale, Allen Keys Set, 1/4” + 1/2” Socket Wrench Set
  • Connection Check Frequency: After Every 1,000 Operating Hours
  • Winding Type: 0150
  • Protection Rating: IP65
  • Encoder Type: Single-Turn Absolute Encoder with 512 Increments
  • Encoder Accuracy: +/-0.0167° Absolute Accuracy, +/-0.001' Relative Accuracy
  • Output Shaft: Whole-Key Balanced with Keyway
  • Rated Speed: 1,500RPM
  • Rated Power: 39.3kW
  • Rated Current: 89.5A
  • Bearing Type: Standard with Deep-Groove Ball Bearings
  • Balancing Standard: DIN ISO 2373
  • Motor Size: 160
  • Motor Length: B
  • Mounting Style: Flange and Foot
  • Operating Temperature Range: 0°C to 40°C
  • Start-Up Procedure: Warm-Up at 1,000RPM for One Hour After 1 to 5 Years of Idleness
  • Operating Environment: Clean, Dust-Free, Dry Environment
  • Availability: Global Shipment
