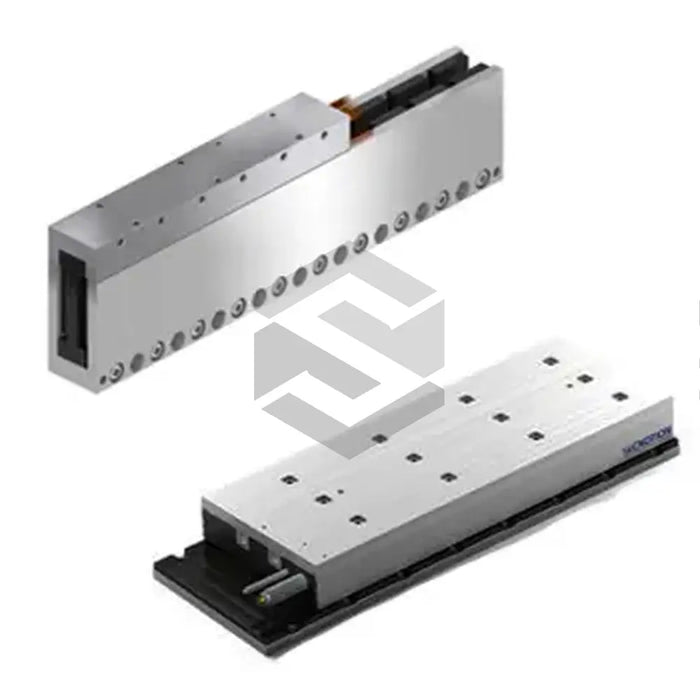

series image of MCS040-3S-0120-NNNN

MCS040-3S-0120-NNNN

by Bosch Rexroth Indramat
$1,665.00 - $1,665.00
$1,665.00
$1,665.00 - $1,665.00
$1,665.00
Available, Shipping Varies
The MCS040-3S-0120-NNNN, a coreless secondary part produced by Bosch Rexroth Indramat, forms an integral component of the MCL series of ironless linear motors. Featuring a synthetic resin-coated magnet, this accessory is found beneath the primary part of the motor and includes a U-shaped yoke. With a pole width of 30mm, the part is identifiable by its type designation and serial number at the bottom. The passive unit, with nickel-plated iron components for anti-corrosion, can be individually positioned and combined with other components to achieve the required traverse path. Prior to operating, ensure it is appropriately grounded. Care with handling is required for those with hearing aids, metal implants, and pacemakers. The position of the product is denoted by threads or holes in the machine slide and bed. Global shipping for this product is available.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Name: MCS040-3S-0120-NNNN
  • Product Type: Coreless Secondary Part
  • Series: MCL
  • Material: Magnets coated with Synthetic Resin
  • Feature: U-shaped Yoke
  • Pole Width: 30mm
  • Identification: Type Designation with a Serial Number
  • Installation Requirement: Dedicated Threaded Holes
  • Pre-operation Procedure: Grounding
  • Position Adjustment: Yes
  • Anti-corrosion: Nickel-plated Iron Components
  • Multi-secondary Parts Installation: Permitted
  • Length Requirement: Greater than or equal to the sum of the lengths of the traverse path and the primary part
  • Commutation Requirement: Must house the output cable of the Hall unit
  • Inversion: No change in the order of magnetization when rotated by 180°
  • Health Hazard: Can pose hazards to personnel with hearing aids, metal implants and pacemakers
  • Position Specification: By the threads or holes within the machine slide and bed
  • Shipping: Worldwide.
