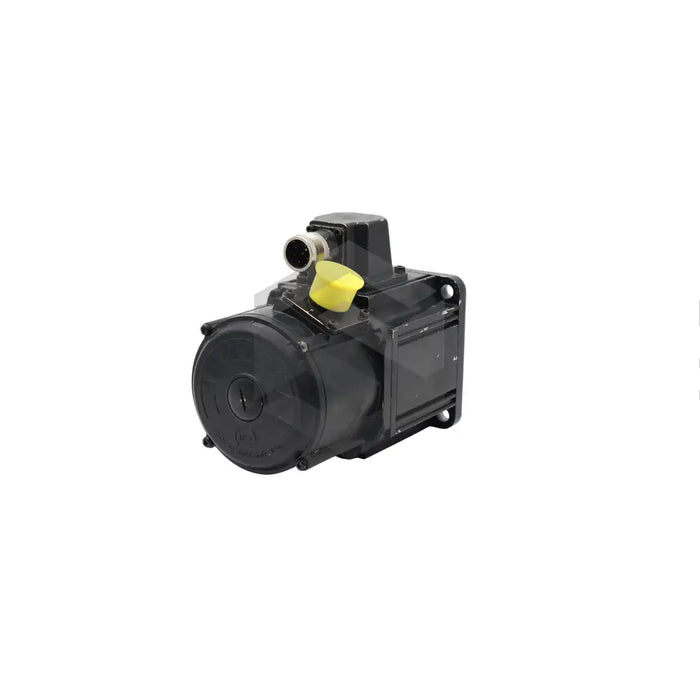

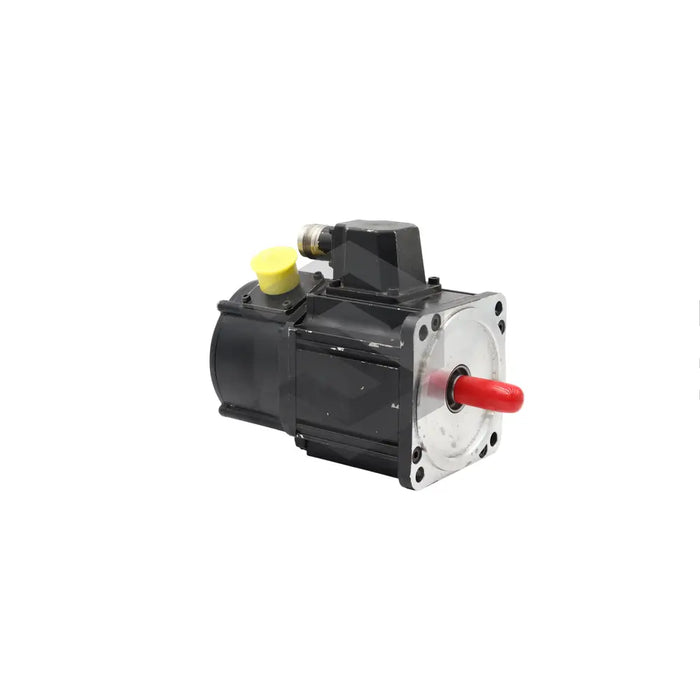

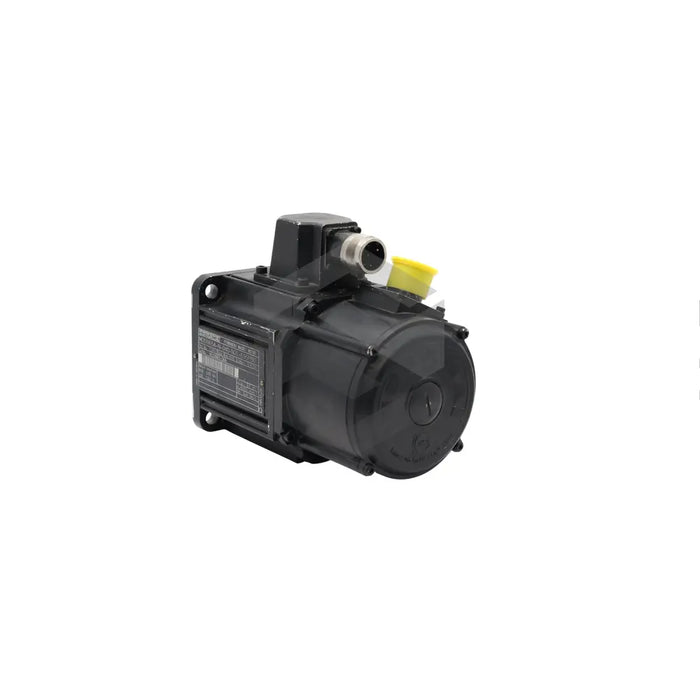

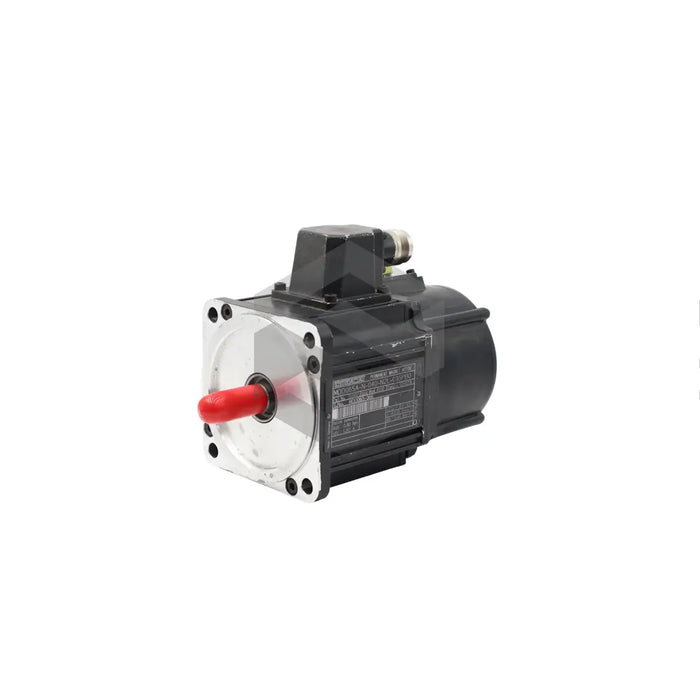

series image of MDD065A-N-040-N2L-095PA0

MDD065A-N-040-N2L-095PA0

by Bosch Rexroth Indramat
$17,615.65 - $17,615.65
$17,615.65
$17,615.65 - $17,615.65
$17,615.65
In Stock, Ships 3 - 5 Days
The Bosch Rexroth Indramat MDD065A-N-040-N2L-095PA0 is a digital AC servomotor suited for operation in rolling feeds in punching and pressing functions. The motor has a size code of 065 and features a winding inductance of 20.3mH. It's equipped with electronic commutation and a brushless design for maintenance-free operation. The motor's temperature is regulated by an internal sensor within the windings, and it includes a protective layer against dust ingress. The unit's black coating ensures resistance towards chalky residues, weathering, and yellowing, although it may peel under frequent steam cleaning. The servomotor's performance may be derated if ambient temperature and installation altitude limits are surpassed. Other features include a 95mm centering diameter, a theoretical peak torque of 2.3Nm, and a 1-year warranty.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • MDD065A-N-040-N2L-095PA0: digital AC servomotor
  • Size Code: 065
  • Applications: roller feeds for punching and pressing
  • Winding Inductance: 20.3mH
  • Commutation: electronic
  • Design: brushless
  • Temperature Monitoring: sensor in motor windings
  • Protection: against dust penetration
  • Stationary Operation: weatherproofed conditions
  • Housing Coat: resistant against chalky buildups, weathering, yellowing
  • Shaft: form-fitting shaft hub connection
  • Maximum Torque: 2.3Nm
  • Centering Diameter: 95mm
  • Helical Teeth Drive Pinions: possible thermal stress
  • Peak Current Rating: 8.1A
  • Rotor Moment of Inertia: 1.4 x 10-4 kgm2
  • Balance Class: reduced according to DIN VDE 0530
  • Shaft Design: shaft with key according to DIN 6885
  • Mounting Style: B05 only
  • Shipping: UPS and USPS
