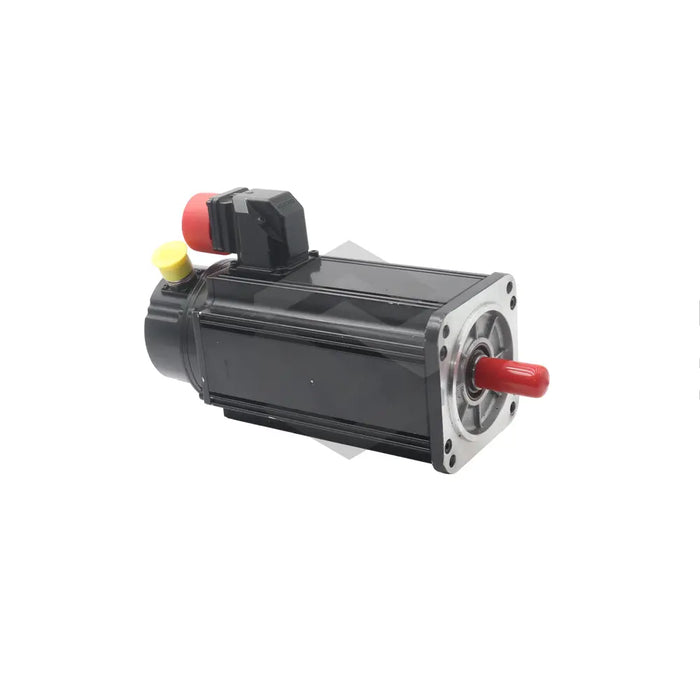

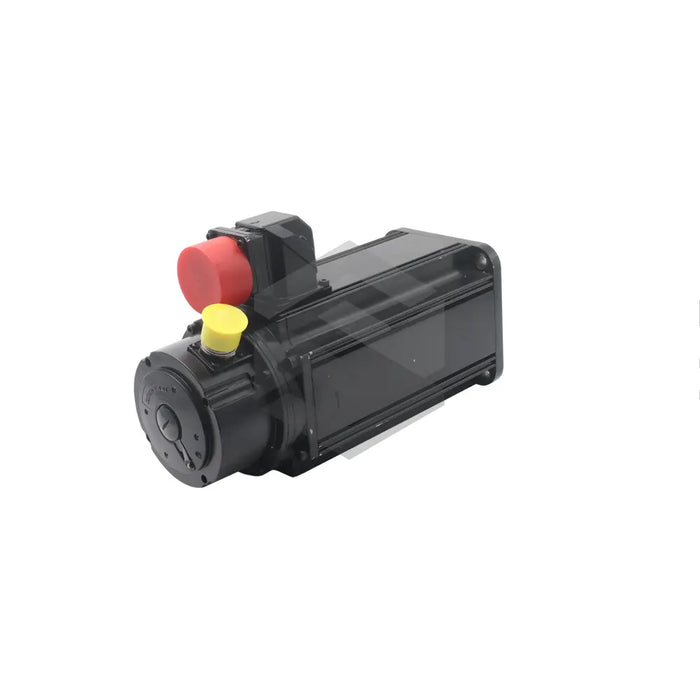

subseries image of MDD071B-N-030-N2L-095GB0

MDD071B-N-030-N2L-095GB0

by Bosch Rexroth Indramat
$2,290.56 - $2,290.56
$2,290.56
$2,290.56 - $2,290.56
$2,290.56
Available, Shipping Varies
The MDD071B-N-030-N2L-095GB0 is an Indramat MDD Digital AC Servo Motor developed by Bosch Rexroth, renowned for pioneering drive and control technologies. Engineered for maintenance-free operation, it combines a brushless design with lifetime lubricated bearings. Boasting an incredibly dense power loading, it is ideal for dynamic applications such as roller inputs for pressing, punching, and nibbling machines, as well as tool-changing devices. This model features a plain output shaft for non-positive shaft-hub-connections, rotor inertia of 8.9 x 10-4 kgm2, winding resistance of 1.60 Ohm, and a nominal speed of 3000 min-1. It is designed without a blocking brake but includes a digital servo for evaluating velocity and position. The motor, a permanent magnet-excited synchronous type with electronic commutation, meets protection category IP65 and has an insulation rating of F. Its housing, black prime-coated (RAL 9005), caters ideally to surface cooling and natural convection. The device, weighing 8.8 kg, operates optimally within an altitude of 1000 meters above sea level and an ambient temperature range of 0? to +45 ?C.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Model: MDD071B-N-030-N2L-095GB0
  • Design: Brushless and Lifetime Lubricated Bearing
  • Applications: Dynamic Applications (Roller Inputs for Pressing, Punching, and Nibbling Machines and Tool-Changing Devices)
  • Output Shaft Type: Plain
  • Rotor Moment of Inertia: 8.9 x 10-4 kgm2
  • Winding Resistance: 1.60 Ohm
  • Nominal Speed: 3000 min-1
  • Brake Type: Without Blocking Brake
  • Feedback Type: Digital Servo (Velocity and Position Evaluation)
  • Maximum Theoretical Torque: 13.6Nm
  • Peak Current: 32.8 Amperes
  • Inductance: 9.4mH
  • Motor Type: Permanent Magnet-Excited Synchronous Motor with Electronic Commutation
  • Protection Category: IP65
  • Insulation Category: F
  • Cooling Type: Surface-Cooling and Natural Convection
  • Housing Color: Black Prime-Coated (RAL 9005)
  • Weight: 8.8 Kilograms
  • Torque Constant: 0.60 Nm/A (at 20 ?C)
  • Installation Requirements: Simple but requires careful handling
  • Suitable Altitude: Up to 1000 Meters Above Sea Level
  • Permissible Ambient Temperature Range: 0? to +45 ?C
