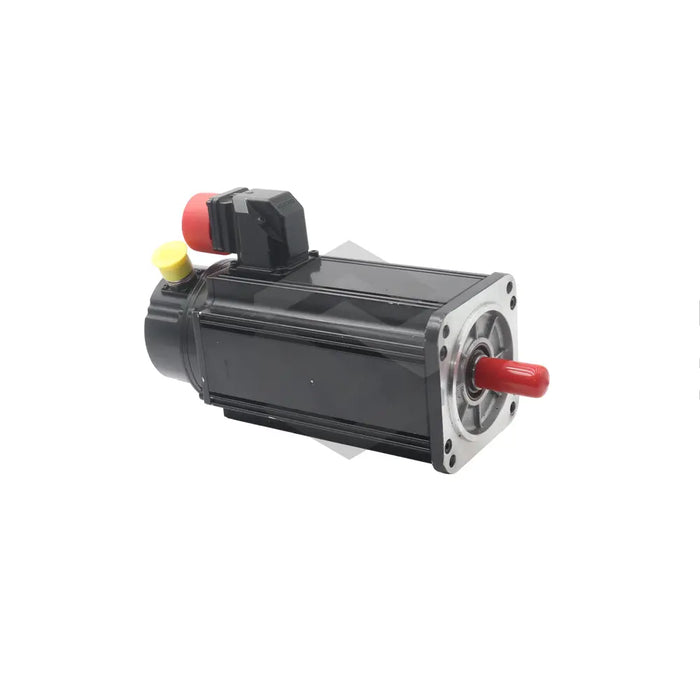

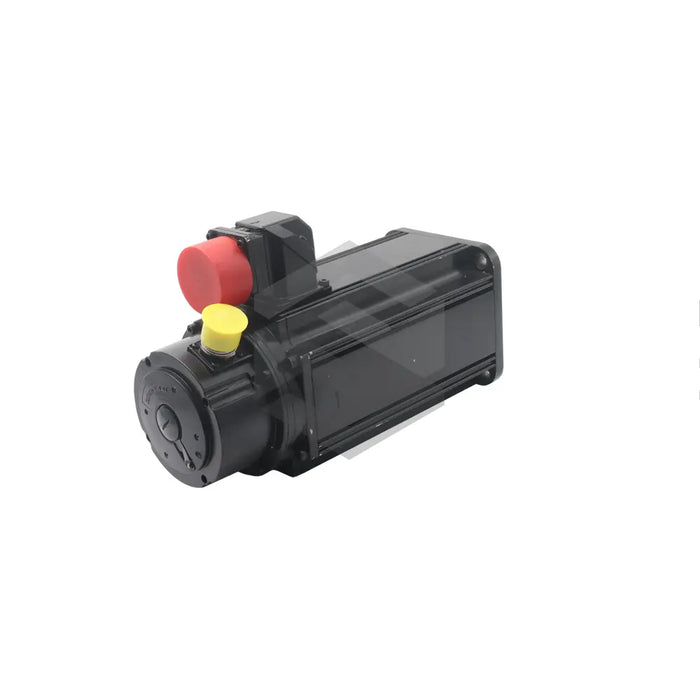

MDD071B-N-030-N2S-095PB1
The MDD071B-N-030-N2S-095PB1, a product of Bosch Rexroth Indramat, is part of the elite MDD AC Servo Motor series. It's a brushless synchronous motor designed for minimal maintenance. Notable for its high-power density and precision motion, the motor is excellent for high-accuracy applications such as tool handling and robotics. Designed to operate at a nominal speed of 3,000 RPM, it generates a continuous standstill torque of 4.4Nm. Also, it has a low weight of 8.8kg making it ideal for industries requiring minimal footprint. The MDD071B-N-030-N2S-095PB1 motor incorporates a digital servo feedback device for accurate shaft position communication to the associated drive controller. This motor comes with a 3.0Nm blocking brake built into its specially designed driveshaft that ensures safety during operation and maintains shaft position when idle. The driveshaft also includes a DIN 6885 keyway. The motor carries an IP65 protection rating and features RAL 9005 Black Prime Coating, making it suitable for any industrial setting.
30 Day Warranty
Technical Specifications
