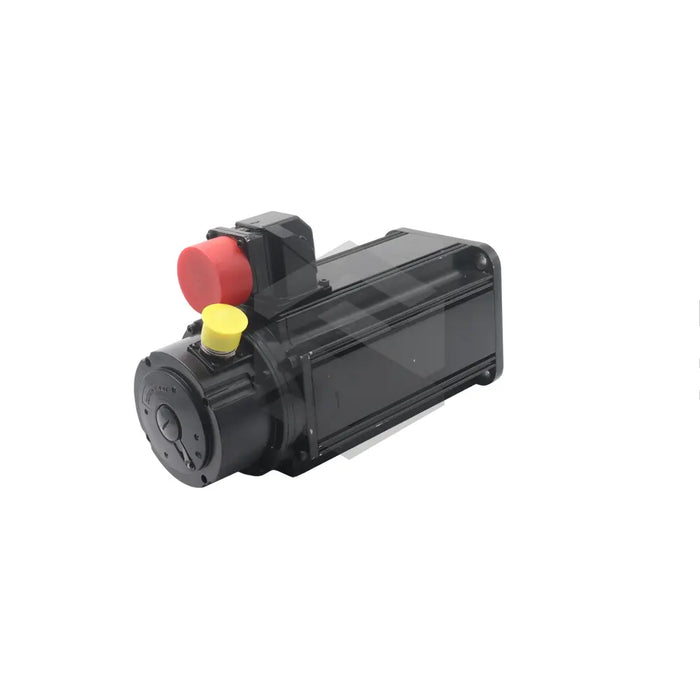

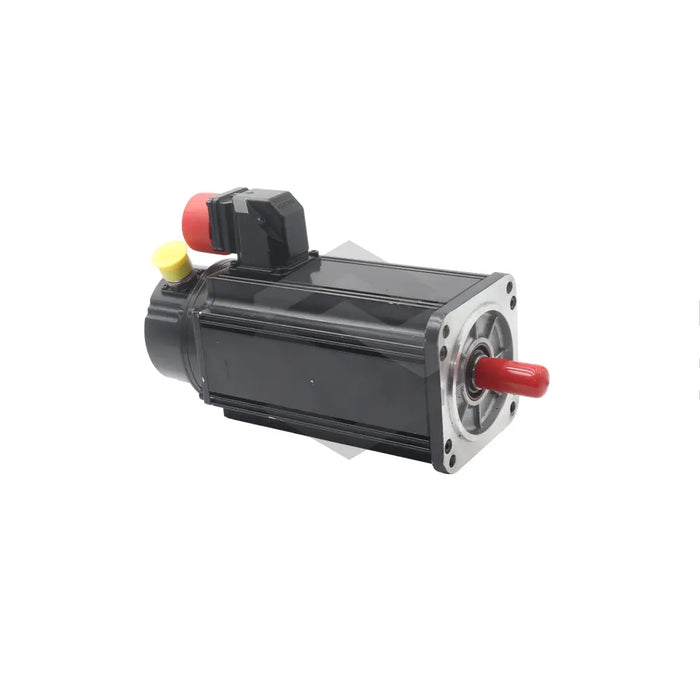

subseries image of MDD071B-N-040-N2M-095GB1

MDD071B-N-040-N2M-095GB1

by Bosch Rexroth Indramat
$2,290.98 - $2,290.98
$2,290.98
$2,290.98 - $2,290.98
$2,290.98
Available, Shipping Varies
The MDD071B-N-040-N2M-095GB1 is a digital AC servo motor from Bosch Rexroth Indramat. Suited for high-power applications, it integrates into tool-changing gear and pressing and punching machines. The black-coated design provides for surface and natural cooling. This 8.8 kg motor has a thermal time constant of 45 minutes, a torque constant of 0.60 Nm/A, and an inductance rating of 9.4mH. With a plain output shaft, this motor boasts a holding torque of 3.0 Nm from a blocking brake, a winding resistance of 1.60 Ohm, and a rotor inertia moment of 8.9 x 10-4 kgm2. The MDD071B-N-040-N2M-095GB1 operates in 0 to 45 degrees Celsius and at altitudes up to 1000 meters. Offering IP 65 protection and an insulation classification of F, it includes an accurately detecting digital servo feedback and a permanently lubricated bearing with high load capacity. It can deliver a theoretical maximum torque of 13.6Nm while consuming a peak current of 32.8 amperes.
30 Day Warranty
Technical Specifications
  • Manufacturer: Bosch Rexroth Indramat
  • Product Type: Industrial Control Motion
  • Model: MDD071B-N-040-N2M-095GB1
  • Housing Design: Black primary coated (RAL 9005)
  • Cooling Type: Surface and natural cooling
  • Use: High power applications including tool-changing devices and roller inputs
  • Weight: 8.8 kilograms
  • Thermal Time Constant: 45 minutes
  • Torque Constant: 0.60 Nm/A
  • Inductance: 9.4mH
  • Output Shaft: Plain design for non-positive shaft-hub-connections
  • Ambient Temperature Range: 0 to 45 degrees Celsius
  • Maximum Installation Altitude: 1000 meters above sea level
  • Holding Torque of Blocking Brake: 3.0 Nm
  • Winding Resistance at 20 ?C: 1.60 Ohm
  • Moment of Inertia of the Rotor: 8.9 x 10-4 kgm2
  • Maximum Torque: 13.6Nm
  • Peak Current: 32.8 amperes
  • Operating Speed: 3000 min-1
  • Motor Type: Permanent magnet-excited synchronous motor with electronic commutation
  • Protection Rating: IP 65
  • Insulation Classification: F
  • Bearing Type: Lifetime lubricated bearing with high load capacity
  • Position Detection: Equipped with digital servo feedback
